Digital PBX

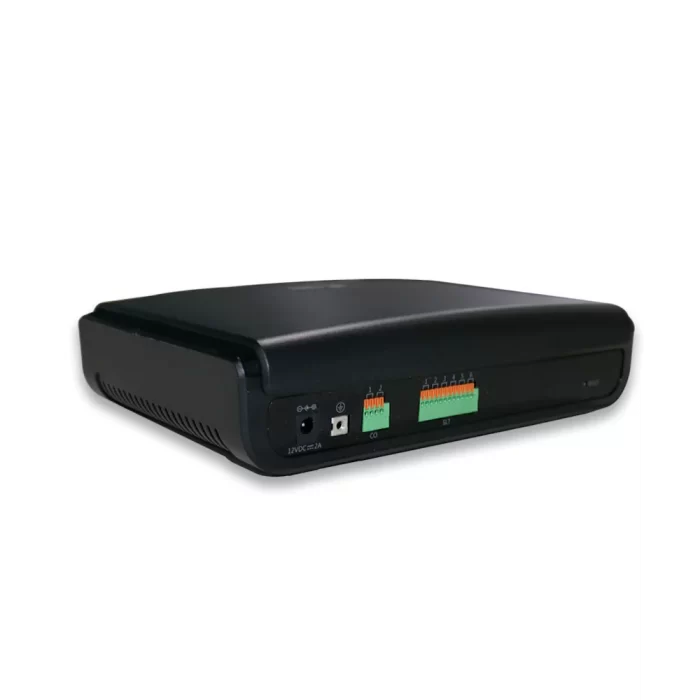

Matrix Digital PBX with 4 Trunks and 12 Analog Extensions

Matrix Digital PBX with 2 Trunks and 6 Analog Extension

VISIONPRO206

  • 40+ Value Added Call Attributes
  • PCM/TDM, Digital Switching, 100% Non-Blocking
  • 16-bit DSP Processor
  • DTMF and Pulse Dialing
  • Over Voltage Secondary Protection
  • Dimensions (mm): Width 231 x Height 162.5 x Depth 55

100 in stock

Contact Us
Call Now Schedule Call Email
ADD TO QUOTE
This product is already in quote request list
Browse the list
Add to wishlist
SKU: 3000000439 Categories: Hardware, Telecom
Share
  • Description
  • SPECIFICATIONS
  • DOWNLOADS
Description

Seamless communication is critical for every organization to function efficiently. Matrix VISIONPRO, “The Digital PBX for Small Offices” – is a field-proven Telecom system that helps you strengthen business communication.

This digital PBX offers value-added features Like reducing communication costs, increasing productivity, and simplifying business processes with its efficient call management solution.

Built around DSP-based architecture with innate single port power fail transfer, Dual Tone Multi-Frequency Tone (DTMF), Frequency Shift Key (FSK), and Command Line Interface (CLI) support. Matrix VISIONPRO is a reliable, stable, robust, and maintenance-free solution for Hospitals and Hotels.

SPECIFICATIONS

SPECIFICATIONS

VISIONPRO206
Digital PBX with 2 Trunks and 6 Analog Extensions
Parameters Specifications
Type of Switching PCM/TDM, Digital Switching, 100% Non-blocking
Processor 16-bit DSP
Signaling Loop Start
Dialing DTMF and Pulse (10/20PPS)
Off-Hook AC Impedance 600/900/Complex
Off-Hook Current 39mA Max.
Loop Limit 1800Ω Max (Excluding Telephone)
On-Hook Voltage (Tip/Ring) -48V nominal
DTMF detection ITU-T Q.24
Return Loss >18dB
Longitudinal Balance >50dB
Transmission Level Adjust Tx Gain: -12dB to +6dB, Rx Gain: -12dB to +6dB
Ringing Trapezoidal 50VRMS/25Hz and Sinusoidal 52VRMS/25Hz
REN 3
CLI Presentation DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Protection Over Voltage Secondary Protection
Physical Connector 2.54mm Push Type connector
CO (Central Office)/Two-Wire Trunk (TWT)
Signaling Loop Start
Loop Limit 1200Ω
Off-Hook AC Impedance 600/900/Complex
Pulse Dialling 10/20 PPS
DTMF Dialling and Reception ITU-T Q.23 and Q.24
Return Loss >18dB
Longitudinal Balance >50dB
Transmission Level Adjust Tx Gain: -15dB to +10dB. Rx Gain: -15dB to + 10dB
CLI Reception DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Call Maturity Delay and Polarity Reversal
Protection Over Voltage and Over Current Secondary Protection
Physical Connector Over Voltage Secondary Protection
Physical Connector 2.54mm Push Type connector
Input External Adapter 12V@2A for VISIONPRO 206, 308, 412
Dimensions (WxHxD) 23.1×16.25×5.5cm (10.5″x11.2″x3.1″)
Unit Weight 0.65 kg (1.43lbs)
Shipping Weight 3.5 kg (7.7lbs)
Installation Wall Mount
Operating Temperature 0°C to 45 °C (+32°F to +122°F)
Operating Humidity 95% RH, Non-Condensing
Application Diagram
DOWNLOADS

DOWNLOADS

Datasheet

Presentation

You may also like…

Close

Matrix VoIP Server Module for ETERNITY NENX

Software Products, Telecom, Telecom Software Products
  • Max Calls: 25
  • Max. IP Users: 50
  • Max. SIP Trunks: 8
  • Max. VoIP Channels: 8
  • Note: This module is required only in ETERNITY NENX312 and ETERNITY NENX416
Add to wishlist
Add to cart
Quick view
Close

License for Voicemail in ETERNITY NENX

Software Products, Telecom, Telecom Software Products
  • Attend Simultaneous Calls
  • Voice Mail Channels: 4
  • No. of Mail Boxes: Equivalent to No. of Subscribers (IP/Digital/Analog)
  • Default Storage Capacity: 288 Hrs. (8GB), Expandable up to 1152 Hrs.
  • Note: This is only applicable for ETERNITY NENX312 and ETERNITY NENX416 (32GB)
Add to wishlist
Add to cart
Quick view
Digital PBX
Close

Matrix Digital PBX with 3 Trunks and 8 Analog Extensions

Hardware, Telecom
VISIONPRO308
  • 40+ Value Added Call Attributes
  • PCM/TDM, Digital Switching, 100% Non-Blocking
  • 16-Bit DSP Processor
  • DTMF and Pulse Dialing
  • Over Voltage Secondary Protection
  • Dimensions (mm): Width 231 x Height 162.5 x Depth 55 mm
Add to wishlist
Add to cart
Quick view
Digital PBX
Close

Matrix Digital PBX with 4 Trunks and 12 Analog Extensions

Hardware, Telecom
VISIONPRO412
  • 40+ Value Added Call Attributes
  • PCM/TDM, Digital Switching, 100% Non-Blocking
  • 16-Bit DSP Processor
  • DTMF and Pulse Dialing
  • Over Voltage Secondary Protection
  • Dimensions (mm): Width 231 x Height 162.5 x Depth 55
Add to wishlist
Add to cart
Quick view
Close

Matrix Unified IP Communication – Enterprise

Hardware, Telecom
ETERNITY NENXIP50
  • 4 FXO Ports
  • 2 FXS Ports
  • 2 GSM/3G/4G Ports
  • Built-In 50 IP Users
  • Built-In 4 Voicemail Channels
  • Dimensions (mm): Width 320.2 x Height 51.1 x Depth 208.1
Add to wishlist
Add to cart
Quick view
Close

Matrix Unified IP Communication – Enterprise

Hardware, Telecom
ETERNITY NENXIP50
  • 4 FXO Ports
  • 2 FXS Ports
  • 2 GSM/3G/4G Ports
  • Built-In 50 IP Users
  • Built-In 4 Voicemail Channels
  • Dimensions (mm): Width 320.2 x Height 51.1 x Depth 208.1
Add to wishlist
Add to cart
Quick view
Close

Matrix IP for Modern Business Communications

Telecom, Hardware
PRASAR UCS SME (SPARK 200)
  • Up to 250 IP Subscribers
  • 99 SIP (VoIP) Trunks
  • Up to 248 VoIP (VOCODER) Channels
  • Up to 64 Voice Mail Channels
  • 1+1 Active-Active Redundancy
  • Dimensions (mm): Width 275 x Height 43.75 x Depth 185.6
Add to wishlist
Add to cart
Quick view
Close

Matrix VoIP Server Module for ETERNITY NENX

Software Products, Telecom, Telecom Software Products
  • Max Calls: 25
  • Max. IP Users: 50
  • Max. SIP Trunks: 8
  • Max. VoIP Channels: 8
  • Note: This module is required only in ETERNITY NENX312 and ETERNITY NENX416
Add to wishlist
Add to cart
Quick view

Related products

GSM Fixed Cellular Terminal
Close

Matrix 4G Fixed Cellular Terminal for Voice Applications

Hardware, Telecom
SIMADO GFX11/4G
  • 4G FCT for Voice Applications
  • ETSI GSM Phase 2/2+ Compliant
  • Rj11 Physical Connector
  • DTMF and Pulse Dialing
  • DTMF and FSK CLI Presentation
  • Dimensions (mm): Width 133.5 x Height 198 x Depth 44.6
Add to wishlist
Add to cart
Quick view
Matrix Media Multiport Gateway
Close

Matrix Media Multiport Gateway

Hardware, Telecom
SIMADO GFX44
  • 4 GSM SIM & 4 FXS Ports
  • ETSI GSM Phase 2/2+ Compliant
  • Rj11 Physical Connector
  • DTMF and Pulse Dialing
  • IEC 60950-1, RoHS FCC Part15, CE, Regulatory Compliant
  • Dimensions (mm): Width 231 x Height 162 x Depth 55
Add to wishlist
Add to cart
Quick view
Premium IP Phone
Close

Matrix Premium IP Phone for Smart Enterprises

Hardware, Telecom
SPARSH VP510E
  • 240*64 Pixels Graphical LCD with Backlit
  • 4 Context Sensitive Keys
  • Built-in 16 DSS Keys for Feature, Line, and Extension
  • High-Quality Full Duplex Speaker Phone
  • Power over Ethernet (IEEE 802.3af)
  • Dimension (mm): Length 247 X Breadth 183 X Height 43
Add to wishlist
Add to cart
Quick view
Gateway Solution
Close

Matrix VOIP – T1/E1 PRI Gateway Solution 2P

Hardware, Telecom
SETU VTEP 2P
  • Up to 60 Simultaneous VoIP to PRI Calls
  • VoIP Protocols: SIP V2, SDP, RTP (RFC 2883)
  • Network Protocols: IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
  • Dial Tone, Ring Back Tone, Busy Tone, and Error Tone
  • Dimensions with Side Clamp (mm): Width 491 X Height 155.7 X Depth 46
  • Dimensions without Side Clamp (mm): Width 250.6 X Height 155.7 X Depth 46
Add to wishlist
Add to cart
Quick view
Gateway Solution
Close

Matrix VOIP – T1/E1 PRI Gateway Solution 1P

Hardware, Telecom
SETU VTEP 1P
  • Up to 30 Simultaneous VoIP to PRI Calls
  • VoIP Protocols: SIP V2, SDP, RTP (RFC 2883)
  • Network Protocols: IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
  • Dial Tone, Ring Back Tone, Busy Tone, and Error Tone
  • Dimensions with Side Clamp (mm): Width 491 X Height 155.7 X Depth 46
  • Dimensions without Side Clamp (mm): Width 250.6 X Height 155.7 X Depth 46
Add to wishlist
Add to cart
Quick view
Close

Expansion Card for Digital Key Phones (DKP)

Software Products, Telecom, Telecom Software Products
  • DKP Ports: 8
  • Compatible PBX: ETERNITY PENX and PE Series
Add to wishlist
Add to cart
Quick view
Close

IP-PBX with Universal Connectivity and Mobile Extensions

Telecom
ETERNITY PENX6SAC
  • Universal Slots: 6
  • Max. IP Users: 100
  • Max. TDM Ports: 48
  • Built-in Ports: 5 IP Users, 4 VoIP & 4 VMS
  • Note: All ETERNITY PENX6SAC with SARVAM UCS SMB (Factory Loaded)
  • Note: Free IP USER can only be used when NX DBM VOCODER64 is installed
  • Note: Free VoIP Channel and VMS Channel can be used with NX DBM VOCODER64 & NX DBM VMS64, respectively
Add to wishlist
Add to cart
Quick view
Close

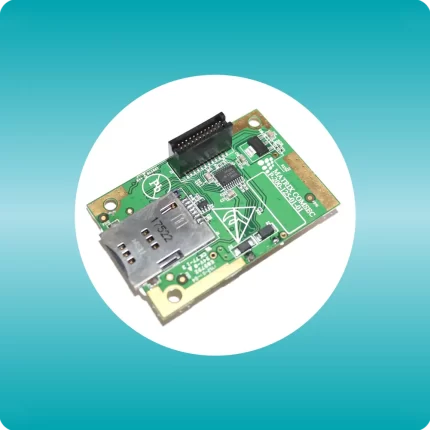

GSM Module for Voice Calls
