5MP IR Turret Camera with 6mm Lens
Back to products
Next product
2MP IR Dome PTZ Camera with 25x Zoom

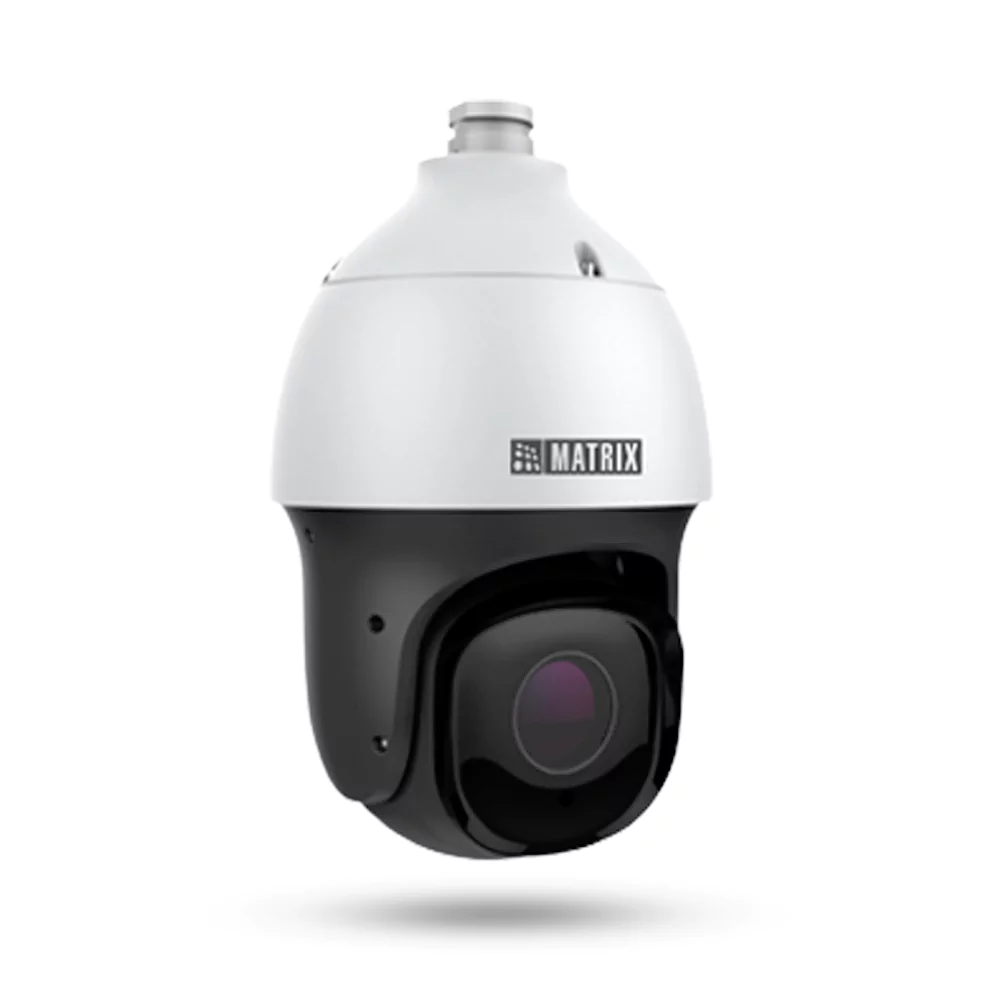

2MP IR Dome PTZ Camera with 33x Zoom

SATATYA PZCR20ML33CWP

  • Better Images even in Low Light with Sony STARVIS Back-Illuminated CMOS Sensor
  • High-quality Images with True WDR 140 dB
  • Video Compression H.265, H.264, MJPEG
  • Optical Zoom up to 33 times
  • IR Range up to 200 meters
  • 256 GB SD Card for Edge Recording
  • Dimensions (mm): Diameter Φ222 x Height 372

100 in stock

Contact Us
Call Now Schedule Call Email
ADD TO QUOTE
This product is already in quote request list
Browse the list
Add to wishlist
SKU: 3000001330 Categories: 2 MP, Dome Camera, Hardware, IPVS
Share
  • Description
  • SPECIFICATIONS
  • DOWNLOADS
Description

Matrix Pan Tilt and Zoom 2MP IR Dome PTZ Camera with 33x Zoom are designed for 360° Surveillance. This unique ability of panning, tilting and zooming of the camera allows for better coverage, especially in large areas.

Powered by the True WDR algorithm the cameras ensure balanced image output in varying lighting conditions. Smart monitoring features of the camera like moving to a particular preset position and easy integration through  ONVIF make it an ideal product for maximum protection at a minimal cost.

SPECIFICATIONS

SPECIFICATIONS

Camera
Image Sensor 1/2.8” SONY – CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology – STARVIS Series)
Signal System PAL/ NTSC
Minimum Illumination Color: 0.001 lux @ F1.5, Monochrome: 0 lux with IR
Shutter Speed 1s – 1/100000s
Day and Night IR Cut Filter with Auto Switch
Wide Dynamic Range 140dB
Optical Zoom 33x
Digital Zoom 16x
LENS
Focal Length 4.8mm – 120mm
Angle of View Horizontal: 58.5° – 2.8°
Vertical: 33.2° – 1.5°
IR Range 200m
Application Diagram
DOWNLOADS

DOWNLOADS

Datasheet

Brochure
