    HiD iClass Card and Bluetooth Based Access Control Reader with Keypad

    COSEC ATOM RD100KI

    • Multi-Credential Support – Mobile authentication, HiD iClass Card, and PIN
    • A Backlit Touchsense Keypad
    • Supports Multi-factor Credential Support
    • Supports Third Party Door Controllers via Weigand Interface
    • Built-in Buzzer Alert System, Tamper Detection with Tri-color Status LED
    • Suitable for Access Control Applications
    • Dimensions (mm): Width 60 x Height 101 x Depth 19

    100 in stock

    Contact Us
    Call Now Schedule Call Email
    ADD TO QUOTE
    This product is already in quote request list
    Browse the list
    Add to wishlist
    SKU: 3000001362 Categories: ACTA, Hardware
    Share
    • Description
    • SPECIFICATIONS
    • DOWNLOADS
    Description

    COSEC ATOM RD100KI – HiD iClass Card and Bluetooth Based Access Control Reader with Keypad satisfies all the access control requirements present across the markets. Maintaining an equilibrium between utility and aesthetics, COSEC ATOM RD100KI complements corporate workspaces’ performance, securing them with world-class access control.

    Beyond scratch-protection and enhanced looks, it integrates third-party controllers via the Weigand interface. Manufactured with international standards as the base, it perfectly meets all the applications, both indoor and outdoor. Along with PIN and HiD iClass Card Support, Built-in Wi-Fi and Bluetooth options make this contactless card reader future-proof!

    SPECIFICATIONS

    SPECIFICATIONS

    Specifications ATOM RD100K
    GENERAL
    RF Option ATOM RD100KI: HID iClass Card Support (Read/Write), Desfire EV1 &
    EV2 (CSN Read) and Mifare Classic (CSN Read)
    COMMUNICATION
    Inbuilt Bluetooth Yes
    INTERFACE
    RS-232 Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2)
    Weigand Yes
    RS – 485 Yes (Compatible with ARC DC200P)
    HARDWARE
    Dimensions (H X W X D) 101mm X 60 mm X 19mm
    Weight 140grms (0.30 Lbs)
    Gorilla Glass Yes (Gorilla Glass 3)
    CPU Nordic 32 Bit
    Tamper Detection Yes
    Buzzer Yes (12V Magnetic Buzzer)
    LEDs Yes (Tri Color)
    Ingress Protection (IP) Yes (IP65)
    Vandal Proof (Ik) Yes (IK07)
    Keypad Yes
    ENVIRONMENTAL
    Operating Temperature 0°C to +55°C
    Humidity 5% to 95 % RH Non-Condensing
    CERTIFICATES
    Certificates CE, FCC, ROHS, BIS
    DOWNLOADS

    DOWNLOADS

    Datasheet

    Brochure

    You may also like…

    Close

    Access Control Input Output Controller

    ACTA, Hardware
    COSEC ARC IO800
    • Provides Floor-wise Access Control
    • Can Manage upto 8 Floors
    • Multi Connectivity Options - Ethernet, PoE, and RS-485
    • LED Indication for Devices and Network Status
    • 8 Auxiliary Input Ports to Connect Fire Alarm, Auxiliary Sensors and More
    • 8 Auxiliary Output Ports to Connect Notifier, Strobe Flash, Siren, Elevator Switches and More
    • Suitable for Access Control Applications
    • Dimensions (mm): Width 107 X Height 125.5 X Depth 55
    Add to wishlist
    Add to cart
    Quick view
    Close

    Two Door Access Controller

    ACTA, Hardware
    COSEC ARC DC200P
    • Face, Finger, Card, PIN and BLE as Credential using External Readers
    • Massive Storage Capacity - 50,000 Users, 5,00,000 Event Logs
    • Multi Connectivity Options - Wi-Fi, Ethernet, BLE, USB, 3G/4G/LTE, RS-485
    • Support Third Party Acces Control Readers over Wiegand Interface
    • Available in Direct Door Mode and Panel Door Mode
    • Provides Power to Readers and Lock over PoE/PoE+ interface
    • Industry Standard Rail Mounting and Wall Mounting Options
    • In-Built Status Alert with Tri-Color LED
    • Suitable for Access Control and Time-Attendance Applications
    • Dimensions (mm): Width 78 X Height 140 X Depth 25
    Add to wishlist
    Add to cart
    Quick view
    Close

    Access Control Panel

    ACTA, Hardware
    COSEC PANEL200P
    • Dual Architecture Mode - Standalone and Network
    • Massive Storage Capacity - 25,000 Users, 5,00,000 Event Logs
    • Multi Connectivity Options - Wi-Fi, Ethernet, BLE, USB, 3G/4G/LTE, RS-485
    • In-Built Status Alert with Tri-Color LED
    • Suitable for Access Control and Time-Attendance Applications
    • Dimensions (mm): Width 81.5 X Height 125.25 X Depth 30.5
    Add to wishlist
    Add to cart
    Quick view
    Close

    EM Proximity Card Based Ultra Fast Door Controller

    ACTA, Hardware
    COSEC ARGO CAE200
    • Multi-Credential Support - BLE, EM Proximity Card, Pin
    • Massive Storage Capacity - 50,000 Users, 5,00,000 Event Logs
    • Multi-Connectivity Options - Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
    • Experience Intuitive User Interface with Ultrafast Identification
    • Suitable for Access Control and Time-Attendance Applications
    • Dimensions (mm): Width 74 x Height 186 x Depth 50
    Add to wishlist
    Add to cart
    Quick view
    Close

    COSEC CENTRA Employee Self Service – 100 User License

    ACTA, ACTA Software Products, Software Products
    • Add 100 Employee Self Service Users on COSEC CENTRA PLATFORM "Web based Personalized Employee Self Service Portal for Employees and Reporting Officers
    • Dedicated Mobile Application for iOS and Android - COSEC APTA
    • Events/Leave/Tour/Short-Leave/Official Application and Approval
    • Edit Profile, View Daily, Weekly, Monthly Attendance and Leave Details
    • Leave Balance, Monthly Shifts, Holiday Schedule and Canteen Account Details
    • Auto/Manual Attendance Marking via Geofencing
    • Access COSEC Devices by BLE Scan and QR code Scan
    Add to wishlist
    Add to cart
    Quick view
    Close

    COSEC CENTRA Employee Self Service – 100 User License

    ACTA, ACTA Software Products, Software Products
    • Add 100 Employee Self Service Users on COSEC CENTRA PLATFORM "Web based Personalized Employee Self Service Portal for Employees and Reporting Officers
    • Dedicated Mobile Application for iOS and Android - COSEC APTA
    • Events/Leave/Tour/Short-Leave/Official Application and Approval
    • Edit Profile, View Daily, Weekly, Monthly Attendance and Leave Details
    • Leave Balance, Monthly Shifts, Holiday Schedule and Canteen Account Details
    • Auto/Manual Attendance Marking via Geofencing
    • Access COSEC Devices by BLE Scan and QR code Scan
    Add to wishlist
    Add to cart
    Quick view
    Close

    COSEC VYOM Employee Self Service – 10,00,000 User Days License

    ACTA, ACTA Software Products, Software Products
    • 10,00,000 User Days License for COSEC VYOM ESS
    • Web based Personalized Employee Self Service Portal for Employees and Reporting Officers
    • Dedicated Mobile Application for iOS and Android - COSEC APTA
    • Events/Leave/Tour/Short-Leave/Official Application and Approval
    • Edit Profile, View Daily, Weekly, Monthly Attendance and Leave Details
    • Leave Balance, Monthly Shifts, Holiday Schedule
    • Auto/Manual Attendance Marking via Geofencing
    • View Canteen Account Details
    • Access COSEC Devices by BLE Scan and QR code Scan
    Add to wishlist
    Add to cart
    Quick view
    Close

    COSEC VYOM Field Visit Management – 10,00,000 User Days License

    ACTA, ACTA Software Products, Software Products
    • 10,00,000 User Days License for COSEC VYOM FVM
    • Create Tasks and Assign to User
    • Schedule Field Visit and Map with Location
    • Monitor User Status based on Schedule
    • Field Visit Attendance Correction and Authorisation
    • Generate Field Visit Reports
    Add to wishlist
    Add to cart
    Quick view

    Related products

    COSEC PATH DCFE
    Close

    Finger and MiFare Classic Card Based Compact Biometric Reader

    ACTA, Hardware
    COSEC PATH RDFM
    • Multi-Credential Support - Fingerprint, and MiFare Card
    • Finger Storage Capacity - 9600 Template Capacity
    • Multi-Connectivity Options - RS-232, RS-485, PoE
    • Compact Design with IP65 Rating
    • Integration with Existing Security Infrastructure
    • Buzzer Alert with Tri-color Status LED
    • Suitable for Access Control Applications
    • Dimensions (mm): Width 50.5 x Height 160 x Depth 44
    Add to wishlist
    Add to cart
    Quick view
    Close

    Face and MiFare Classic Card Based Smart Door Controller

    ACTA, Hardware
    COSEC ARGO FACEM
    • Multi-Credentials inclusive of Contactless Technology - Face, BLE, PIN, and MiFare Classic Card
    • Multi-Connectivity Options - Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
    • Massive Storage Capacity - 50,000 Users, 2,00,000 Face Templates
    • Deep Face Learning Algorithm with Adaptive Understanding
    • Weatherproof and Vandal Resistant
    • Suitable for Access Control and Time-Attendance Applications
    • Dimensions (mm): Width 74 x Height 186 x Depth 50
    Add to wishlist
    Add to cart
    Quick view
    Close

    Face and EM Proximity Card Based Smart Door Controller

    ACTA, Hardware
    COSEC ARGO FACEE
    • Multi-Credentials inclusive of Contactless Technology - Face, BLE, PIN, and EM Proximity Card
    • Multi-Connectivity Options - Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
    • Massive Storage Capacity - 50,000 Users, 2,00,000 Face Templates
    • Deep Face Learning Algorithm with Adaptive Understanding
    • Weatherproof and Vandal Resistant
    • Suitable for Access Control and Time-Attendance Applications
    • Dimensions (mm): Width 74 x Height 186 x Depth 50
    Add to wishlist
    Add to cart
    Quick view
    COSEC PATH DCFE
    Close

    Finger and HiD iClass Card Based Compact Biometric Reader

    ACTA, Hardware
    COSEC PATH RDFI
    • Multi-Credential Support - Fingerprint, and HiD iClass Card
    • Finger Storage Capacity - 9600 Template Capacity
    • Multi-Connectivity Options - RS-232, RS-485, PoE
    • Compact Design with IP65 Rating
    • Integration with Existing Security Infrastructure
    • Buzzer Alert with Tri-color Status LED
    • Suitable for Access Control Applications
    • Dimensions (mm): Width 50.5 x Height 160 x Depth 44
    Add to wishlist
    Add to cart
    Quick view
    COSEC PATH DCCE
    Close

    MiFare Classic Card Based Compact Door Controller

    ACTA, Hardware
    COSEC PATH DCCM
    • Multi-Credential Support - BLE and MiFare Classic Card
    • Massive Storage Capacity - 5,00,000 Event Logs, 50,000 Users
    • Multi-Connectivity Options - WiFi, Ethernet, Bluetooth, RS-232, RS-485, Wiegand
    • Compact Design with IP65 Rating
    • Buzzer Alert with Tri-color Status LED
    • Suitable for Access Control and Time-Attendance Applications
    • Dimensions (mm): Width 50.5 x Height 137 x Depth 34
    Add to wishlist
    Add to cart
    Quick view
    Close

    Finger and MiFare Classic Card Based Ultra Fast Biometric Door Controller

    ACTA, Hardware
    COSEC ARGO FOM212
    • Multi-Credential Support - Fingerprint, BLE, MiFare Classic Card, Pin
    • Massive Storage Capacity - 50,000 Users, 5,00,000 Event Logs
    • Finger Template Capacity:- 1:N Mode: 25,000,1:1 Mode: 1,00,000
    • Multi-Connectivity Options - Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
    • Experience Intuitive User Interface with Ultrafast Identification
    • Suitable for Access Control and Time-Attendance Applications
    • Dimensions (mm): Width 74 x Height 186 x Depth 50
    Add to wishlist
    Add to cart
    Quick view
    Close

    EM Proximity Card and Bluetooth Based Access Control Reader

    ACTA, Hardware
    COSEC ATOM RD100E
    • Multi-Credential Support - BLE and EM Proximity Card
    • Sleek, Compact Built
    • Supports Multi-factor Credential Support
    • Supports Third Party Door Controllers via Weigand Interface
    • Built-in Buzzer Alert System, Tamper Detection with Tri-color Status LED
    • Suitable for Access Control Applications
    • Dimensions (mm): Width 60 x Height 101 x Depth 19
    Add to wishlist
    Add to cart
    Quick view
    COSEC PATH DCCE
    Close

    HiD iClass Card Based Compact Door Controller

    ACTA, Hardware
    COSEC PATH DCCI
    • Multi-Credential Support - BLE and HiD iClass Card
    • Massive Storage Capacity - 5,00,000 Event Logs, 50,000 Users
    • Multi-Connectivity Options - WiFi, Ethernet, Bluetooth, RS-232, RS-485, Wiegand
    • Compact Design with IP65 Rating
    • Buzzer Alert with Tri-color Status LED
    • Suitable for Access Control and Time-Attendance Applications
    • Dimensions (mm): Width 50.5 x Height 137 x Depth 34
    Add to wishlist
    Add to cart
    Quick view

    CUSTOMERS







    Questions?
    We're here to help
    From offering expert advice to solving complex
    problems, we've got you covered.
    Live Chat
    Inquire Now
    Catalogue
    Get Support
    Stay Connected

    Logo_white_bg

    Categories
    • Video Surveillance
    • Time-Attendance
    • Access Control
    • Telecom
    Useful Links
    • Privacy Policy
    • Copyright Policy
    SIGN UP FOR NEWSLETTER

      2022 MATRIX COMSEC
      • Menu
      • Categories
      • Video Surviellance
      • Time-Attendance
      • Access Control
      • Telecom
      • Product Selection
      • Login
      • Compare
      Shopping cart
      close

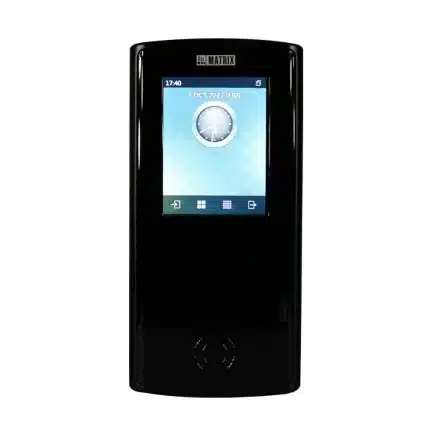

      HiD iClass Card and Bluetooth Based Access Control Reader with Keypad

      100 in stock

      Contact Us
      Call Now Schedule Call Email
      ADD TO QUOTE
      This product is already in quote request list
      Browse the list
      Add to wishlist
      • Login
      • Sign Up
      Forgot Password?
      Lost your password? Please enter your username or email address. You will receive a link to create a new password via email.

      Inquire Now

        Schedule a Call

        Matrix sales engineer will call you on the date and time you choose.

          Submit a Form

              Call Now
              India 1800-258-7747
              09:00 hrs – 18:30 hrs (IST)
              GCC +97155-744-6905
              09:00 hrs – 18:30 hrs (GST)
              USA +1 408-643-0581
              09:00 hrs – 18:30 hrs (ET)
              Email

              Email Submission on Product Page

              Name
              Name Resolution Lens Type
              MIBR80FL28CWS 8MP Fixed View Product
              MIBR80FL36CWS 8MP Varifocal View Product
              MIBR80FL60CWS 8MP Motorized Varifocal View Product
              MIBR80FL28CWP 8MP None View Product
              MIBR80FL36CWP 8MP None View Product
              MIBR80FL60CWP 8MP None View Product
              Name Resolution Lens Type Focal Lenght Audio Support Prameter Prameter Prameter Prameter Prameter Prameter Prameter Prameter
              MIBR80FL28CWS 8MP Fixed 2.8mm No Para 1 Para 1 Para 1 Para 1 Para 1 Para 1 Para 1 Para 1 View Product
              MIBR80FL36CWS 8MP Varifocal 2.8mm-12mm No Para 2 Para 2 Para 2 Para 2 Para 2 Para 2 Para 2 Para 2 View Product
              MIBR80FL60CWS 8MP Motorized Varifocal 2.8mm-12mm No Para 3 Para 3 Para 3 Para 3 Para 3 Para 3 Para 3 Para 3 View Product
              MIBR80FL28CWP 8MP None None Yes Para 4 Para 4 Para 4 Para 4 Para 4 Para 4 Para 4 Para 4 View Product
              MIBR80FL36CWP 8MP None None Yes Para 5 Para 5 Para 5 Para 5 Para 5 Para 5 Para 5 Para 5 View Product
              MIBR80FL60CWP 8MP None None Yes Para 6 Para 6 Para 6 Para 6 Para 6 Para 6 Para 6 Para 6 View Product
              Name Resolution Lens Type Focal Lenght Audio Support BOQ
              MIBR80FL28CWS 8MP Fixed 2.8mm No View Product
              MIBR80FL36CWS 8MP Varifocal 2.8mm-12mm No View Product
              MIBR80FL60CWS 8MP Motorized Varifocal 2.8mm-12mm No View Product
              MIBR80FL28CWP 8MP Yes View Product
              MIBR80FL36CWP 8MP Yes View Product
              MIBR80FL60CWP 8MP Yes View Product
              Lens Type Resolution Deployment IP Channels Product
              MIBR80FL28CWS Fixed 2MP Indoor 8 View Product
              MIBR80FL36CWS Varifocal Lens 8MP Indoor 16 View Product
              MIBR80FL60CWS Fixed 5MP Outdoor 32 View Product
              MIBR80FL28CWP Varifocal Lens 8MP Indoor 64 View Product
              MIBR80FL36CWP Fixed 8MP Outdoor 8 View Product
              MIBR80FL60CWP Fixed 5MP Outdoor 16 View Product
