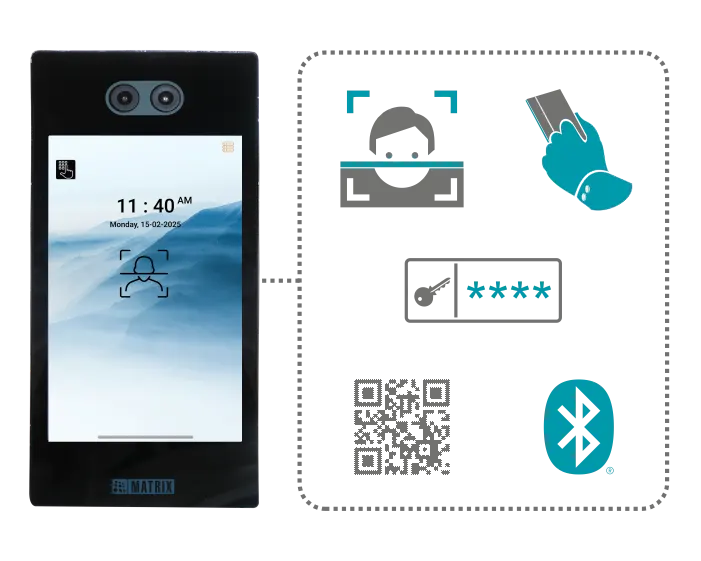

Multiple User Credentials

Multiple User Credential in ARGO Face Door Controllers
  • Biometric: Face
  • Pin and RFID Cards
  • Mobile through BLE
  • Dual Verification for High-Security Applications
Multiple User Credential in ARGO Face Door Controllers

Multiple Connectivity Options

Multiple Connectivity Option Available in COSEC ARGO Face
  • Built-in Bluetooth, Wi-Fi, PoE, Ethernet, GSM/VoLTE options
  • Use Existing IT Infrastructures to Meet Future Requirements
  • Low IT Infrastructure Cost and Future Proof
Multiple Connectivity Option Available in COSEC ARGO Face

Higher User and Template Capacity

Cosec Argo Face Can store higher User
  • Stores up to 50,000 User Profiles
  • Template Capacity up to 2,00,000 Face Templates
  • Event Log Capacity of 5,00,000
  • Reduce Costs by Eliminating the Need for Multiple Devices
Cosec Argo Face Can store higher User

Features

Secured Communication

Secured Communication

Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof

Secured Communication

Aesthetic Look and Design

Aesthetic Look and Design

Leverages an aesthetic look and sleek design with optimized ergonomics, enhancing corporate aesthetics while providing a stylish and user-friendly solution

Aesthetic Look and Design

Gorilla Glass

3.5” IPS Touch Screen with Gorilla Glass 3

Durable and scratch-resistant capacitive display, ensuring long-lasting performance and enhanced durability

Gorilla Glass

Surveillance-grade Camera for Better Viewability

Surveillance-grade Camera for Better Viewability

Equipped with a surveillance-grade camera that offers a wider field of view (FOV), enabling comprehensive coverage and enhanced user capturing capabilities

Surveillance-grade Camera for Better Viewability

IR Camera for Spoof Protection

IR Camera for Spoof Protection

In-built IR camera for face liveness detection, effectively preventing spoofing attacks and ensuring higher security measures for enhanced authentication

IR Camera for Spoof Protection

Deep Learning Technology

Deep Learning Technology

Utilizes an advanced algorithm for faster pre-processing and accurate face recognition, achieving an identification speed of lower than 0.5 seconds

Deep Learning Technology

Adaptive Face Enrollment

Adaptive Face Enrollment

Eliminates the need for re-enrollment and providing enhanced user convenience, accomodating facial feature changes

Adaptive Face Enrollment

Vandal Resistance with IK06

Vandal Resistance with IK06

Boasts higher impact resistance with IK rating, ensuring its durability against rough handling and providing protection against malicious acts

Vandal Resistance with IK06

Weather Resistance with IP65

Weather Resistance with IP65

Offers higher degree of protection with IP65 rating, providing reliable ingress protection against dust and water

Weather Resistance with IP65

Applications

Time and Attendance

Time and Attendance

Time and Attendance

Access Control

Access Control

Access Control

Visitor Management

Visitor Management

Visitor Management

Cafeteria Management

Cafeteria Management

Cafeteria Management

Contract Worker Management

Contract Worker Management

Contract Worker Management

Job Processing and Costing

Job Processing and Costing

Job Processing and Costing

Interface Diagram

COSEC Argo Face Interface Diagram

Technical Specifications

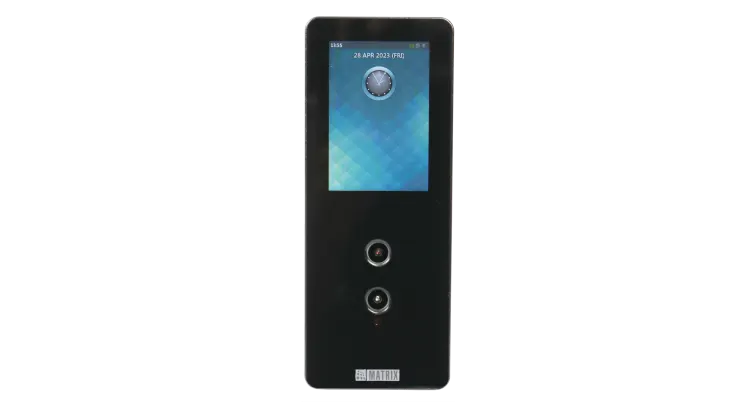

Cosec Argo Face Door Controllers
cosec-argo-face biometric door controller
cosec argo face
Certified Cosec Argo Face door controller

Face and RFID Card Based Access Control and Time-Attendance Door Controller

  • Multi-Credentials inclusive of Contactless Technology – Face, BLE, PIN, and RFID Card
  • Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
  • Massive Storage Capacity – 50,000 Users, 2,00,000 Face Templates
  • Deep Face Learning Algorithm with Adaptive Understanding
CREDENTIAL SUPPORT

Face

  • Yes

PIN

  • Yes

Card

  • COSEC ARGO FACEE:- EM Proximity Card
    COSEC ARGO FACEM:- MIFARE Classic®/Desfire/NFC Tag
    COSEC ARGO FACEI:- HID i-class, HID Prox,EM Prox & Mifare/Desfire/NFC Tag

    *MIFARE and MIFARE Classic® are trademarks of NXP B.V.

BLE - Mobile

  • Yes
CAPACITY

User Profiles

  • 50,000

Face Templates

  • 200,000

Max. Templates Per User

  • 30

Event Logs

  • 500,000
FACE RECOGNITION

Algorithm

  • Deep Learning based Face Recognition

Fake Face Detection

  • Yes

Face Identification

  • 1:200,000 in < 1 sec
  • 1:1 in < 0.5 sec

Face Enrolment

  • Face Recognition Terminal
  • Enrolment Station
  • Upload Images
  • Exception Faces
GENERAL SPECIFICATIONS

Dimensions (WxHxD)

  • 74 mm x 186mm x 50mm

Weight

  • 0.65Kgs (1.433 lbs)

Display

  • 3.5″ IPS LCD (Touch Screen)

Display Resolution

  • 480 x 320 Pixel
  • Yes (Gorilla Glass 3)

Gorilla Glass

  • Yes (Gorilla Glass 3)

CPU

  • Quad Core ARM Cortex-A7 @ 1.5 GHz

GPU

  • Built-in 2 TOPS Neural Network Computing Performance

RAM

  • 2 GB DDR4

Flash Memory

  • 16 GB eMMC16 GB eMMC

SD Card

  • No (Built-in 16GB eMMC provided)

Tamper Detection

  • Yes

Buzzer

  • Yes

IR LEDs

  • Yes

Ingress Protection

  • IP65

Vandal Protection

  • IK06

Certificate

  • CE, FCC, BIS, UL, RoHS

Operating Temperature

  • 0°C to +50°C (32°F to 122°F)

Storage Temperature

  • -20°C to 60°C

Humidity

  • 5% to 95 % RH Non-Condensing
CAMERA

RGB Camera

  • 2MP Surveillance Grade, IR Blocked

Infrared Camera

  • 2MP Surveillance Grade, IR Band Pass

Camera Sensors

  • SONY IMX 307, EXMOR Technology, STARVIS Series
COMMUNICATION

Ethernet

  • Yes (10/100 Mbps – 1 port)

PoE

  • Yes (IEEE 802.3 af)

WiFi

Yes (802.11 b/g/n)

3G/4G/LTE

  • Yes (Additional USB Modem)

BLE

  • Yes (Version4.2) (8m Range)

USB

  • Yes (USB 2.0)
  • Micro USB-Type B
INTERFACE

Exit Switch Interface

  • Yes

External Reader Support

  • Yes (MATRIX and 3rd Party)

External Reader

  • Interface
  • RS232
  • Wiegand
  • Power
  • 12VDC @ 0.5A
  • LED and Buzzer Control
  • Allowed – GREEN LED
  • Buzzer

Wiegand

  • Yes (Selectable IN/OUT)
    IN: 26 Bit format
    OUT: Configurable

Door Lock Relay

  • Yes (30VDC @ 2A, Dry Contacts NO/NC/COM)

Door Lock Power

  • Internal PoE Power: 12VDC @ 0.250 A
  • Internal Adapter Power 12VDC @ 0.5 A
  • External Power 12VDC @ 2A
INSTALLATION

Wall Mount

  • Yes – Plastic Back Cover with Screws

Flush Mount

  • Yes – Metal Bracket with Screws
ACCESSORIES

Power Adapter

  • 12VDC @ 2A (CE, FCC, UL, BIS)

Face Based Time-Attendance Terminal

  • Multi-Credential Support – Face, PIN, and QR Code*
  • Multi-Connectivity Options – PoE, Ethernet, USB, 3G/4G/LTE
  • Massive Storage Capacity – 50,000 Users, 2,00,000 Face Templates
  • Deep Face Learning Algorithm with Adaptive Understanding

*Supported from V20R7 Firmware

CREDENTIAL SUPPORT

Face

  • Yes

PIN

  • Yes

QR Code

  • Yes*(*Support Available from V20R7)
CAPACITY

User Profiles

  • 50,000

Face Templates

  • 200,000

Max. Templates Per User

  • 30

Event Logs

  • 500,000
FACE RECOGNITION

Algorithm

  • Deep Learning based Face Recognition

Fake Face Detection

  • Yes

Face Identification

  • 1:200,000 in < 1 sec; 1:1 in <0.5 sec

Face Enrolment

  • Face Recognition Terminal, Enrolment Station, Upload Images,
    Unidentified Face Enrolment, Adaptive Face Enrolment
GENERAL

Dimensions (WxHxD)

  • 186mm x 74 mm x 50mm (7.3” x 3” x 2 “)

Weight

  • 650gms (1.433 lbs)

Display

  • 3.5″ IPS LCD (Touch Screen)

Display Resolution

  • 480 x 320 Pixel

Gorilla Glass

  • Yes (Gorilla Glass 3)

CPU

  • Quad Core ARM Cortex-A7 @ 1.5 GHz

GPU

  • Built-in 2 TOPS Neural Network Computing Performance

RAM

  • 2 GB DDR4

Flash Memory

  • 16 GB eMMC

SD Card

  • No (Built-in 16GB eMMC provided)

Tamper Detection

  • No

Buzzer

  • Yes

IR LEDs

  • Yes

Ingress Protection

  • IP65

Vandal Protection

  • IK06

Certificate

  • CE, FCC, BIS, RoHS

Operating Temperature

  • -10°C to 50°C

Storage Temperature

-20°C to 60°C

Humidity

  • 5% to 95 % RH Non-Condensing
CAMERA

RGB Camera

  • 2MP Surveillance Grade, IR Blocked

Infrared Camera

  • 2MP Surveillance Grade, IR Band Pass

Camera Sensors

  • SONY IMX 307, EXMOR Technology, STARVIS Series
COMMUNICATION

Ethernet

  • Yes (10/100 Mbps – 1 port)

PoE

  • Yes (IEEE 802.3 af)

WiFi

  • No

3G/4G/LTE

  • Yes (Additional USB Modem)

BLE

  • No

USB

  • Yes (USB 2.0), Micro USB-Type B
INTERFACE

Exit Switch Interface

  • No

External Reader Support

  • No

Door Lock Relay

  • No

Door Lock Power

  • No
INSTALLATION

Wall Mount

  • Yes – Plastic Back Cover with Screws

Flush Mount

  • Yes – Metal Bracket with Screws
ACCESSORIES

Power Adapter

  • No
    • DC 12V INPUT JACK will be available
    • Adapter needs to be purchased separately

Certificates

CE
FCC
BIS
RoHS
