USPs

Ports and Users

  • Up to 4 FXO (CO) Ports, 16 FXS (SLT) Ports
  • 2 GSM/3G/4G Ports
  • IP PBX with up to 50 IP Users
  • Flexible User Management

Universal Network Connectivity

  • PSTN Connectivity
  • SIP Trunk Support
  • PRI (Primary Rate Interface) Connectivity
  • GSM/3G/4G Network Integration
  • VoIP (Voice over Internet Protocol) Compatibility
  • Elimination of Multiple Investments

LDAP Client Support

  • Access and Organize Distributed Directory Over an IP Network
  • Centralized User Authentication
  • Easily Manage Company Call Directory
  • Synchronization of Directory Data
  • Access to External Contact Information

Features

50 IP Users

50 IP Users

IP PBX supports 50 IP users facilitating seamless communication and collaboration across the network

50 IP Users

Detailed Records of 12000 Calls

Detailed Records of 12000 Calls

Provides comprehensive insights into call history, duration, and other call-related data to effortlessly track and analyze communication patterns

Detailed Records of 12000 Calls

2 GSM-3G-4G Ports

2 GSM/3G/4G Ports

Facilitates GSM connectivity, enabling integration of mobile networks for improved connectivity and flexibility

2 GSM-3G-4G Ports

Scheduled Backup

Scheduled Backup

Automatic backup of IP PBX system settings and configurations at designated times to ensure data security

Scheduled Backup

Auto-attendant

Auto Attendant

Effortlessly guide callers to the right extension

Auto-attendant

COSEC Integration

COSEC Integration

Seamlessly integrate IP PBX with COSEC for streamlined management of communication and access

COSEC Integration

Dynamic DNS

Dynamic DNS

Automatically updates IP addresses and allows easy remote access and reliable communication

Dynamic DNS

Multilingual IVR

Multilingual IVR

Delivers a personalized experience that allows callers to navigate and interact with automated menus in their preferred language

Multilingual IVR

Automatic DISA

Automatic DISA

Allows external callers to directly access internal extensions without the need for manual intervention

Automatic DISA

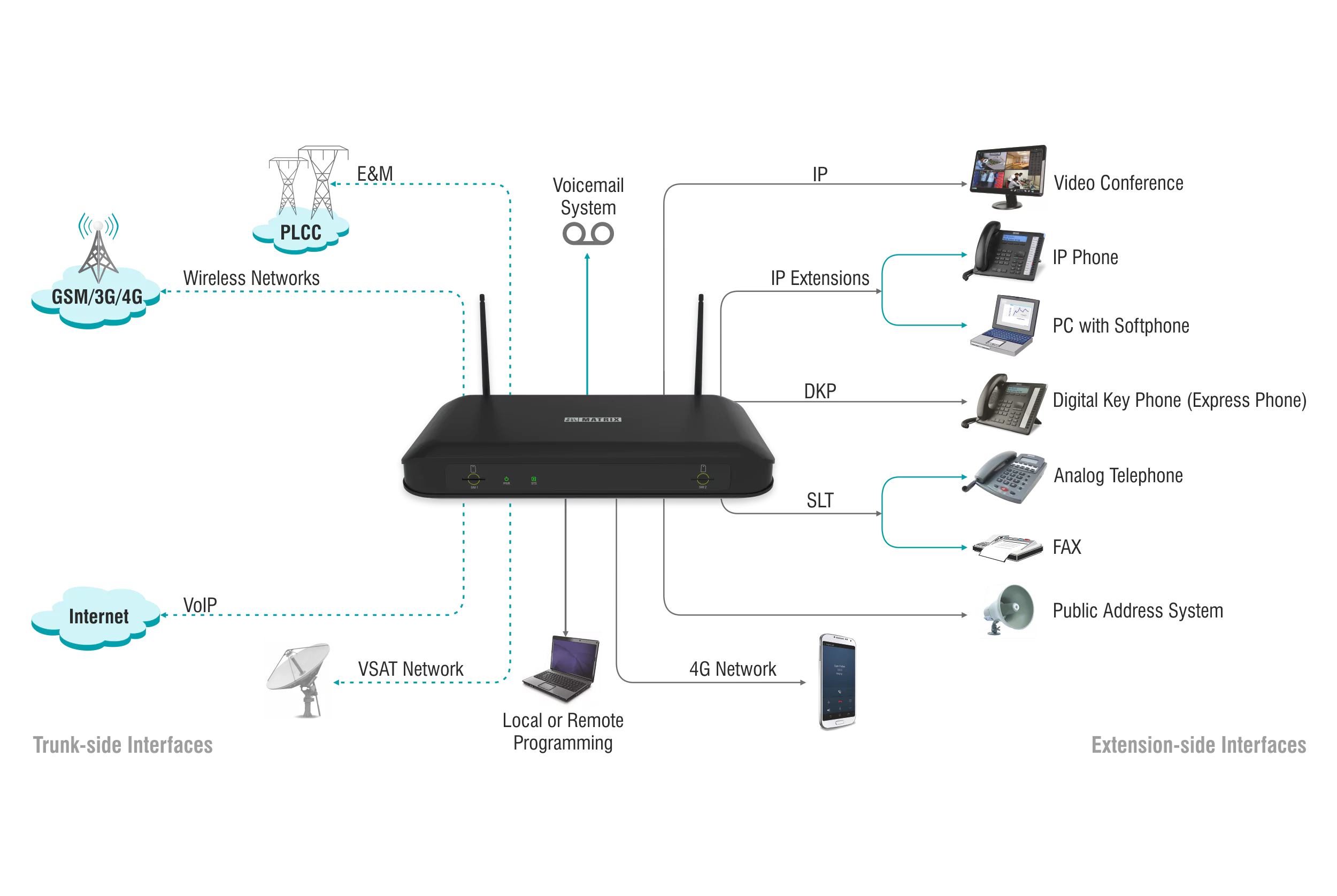

Architecture Diagram

Technical Specifications

Hybrid IP PBX with 3 FXO and 12 FXS Ports

  • 12 FXS/SLT
  • 3 FXO/CO Ports
  • 2 GSM/3G/4G Ports
  • 10 SIP Extensions
  • 8 SIP Trunks
  • Maximum 50 IP Users

Particulars

  • IP PBX: NENX312

FXO Ports (CO)

  • 3

FXS Ports (SLT)

  • 12

GSM/3G Ports

  • 2

IP Users

  • 50

VoIP Trunks (SIP)

  • 8

Max. VoIP CHNL

  • 8

Max. VMS CHNL

  • 4

Max. IP to IP Call

  • 25

Max. IP to TDM Call

  • 8

Conference

  • 6 party

Video Calls

  • 8

VoIP Protocol

  • SIP, SDP, RTP, SRTP

Network Protocol

  • IPv6, IPv4, TCP, UDP, DHCP, VLAN, DynDNS, PPPoE, QoS, STUN

Transport Protocol

  • UDP, TCP, TLS

Codec

  • G.711(A-law, μ-law), G.723, G.729AB, GSM-FR, iLBC

DTMF

  • RTP (RFC2833), SIP Info, IN-Band

LAN

  • 1 × 10/100 Mbps

Voicemail

  • Yes

T.38 Fax

  • Yes

Max. External Storage

  • 32GB

USB

  • 1 (With Factory fitted 8 GB Pen-drive)

Power

  • 24VDC 2.5Amp

Size

  • 320.2 x 51.1 x 208.1 mm

Power Consumption

  • 15W

Environment

  • Operation Range: 0°C to 45°C, Storage Range: -20°C to 65°C,
    Operating Humidity: 5-95% RH Non-Condensing

Mounting

  • 1U Rack Mounting

Hybrid IP PBX with 4 FXO and 16 FXS Ports

  • 16 FXS/SLT
  • 4 FXO/CO Ports
  • 2 GSM/3G/4G Ports
  • 10 SIP Extensions
  • 8 SIP Trunks
  • Maximum 50 IP Users

Particulars

  • IP PBX: NENX416

FXO Ports (CO)

  • 4

FXS Ports (SLT)

  • 16

GSM/3G Ports

  • 2

IP Users

  • 50

VoIP Trunks (SIP)

  • 8

Max. VoIP CHNL

  • 8

Max. VMS CHNL

  • 4

Max. IP to IP Call

  • 25

Max. IP to TDM Call

  • 8

Conference

  • 6 party

Video Calls

  • 8

VoIP Protocol

  • SIP, SDP, RTP, SRTP

Network Protocol

  • IPv6, IPv4, TCP, UDP, DHCP, VLAN, DynDNS, PPPoE, QoS, STUN

Transport Protocol

  • UDP, TCP, TLS

Codec

  • G.711(A-law, μ-law), G.723, G.729AB, GSM-FR, iLBC

DTMF

  • RTP (RFC2833), SIP Info, IN-Band

LAN

  • 1 × 10/100 Mbps

Voicemail

  • Yes

T.38 Fax

  • Yes

Max. External Storage

  • 32GB

USB

  • 1 (With Factory fitted 8 GB Pen-drive)

Power

  • 24VDC 2.5Amp

Size

  • 320.2 x 51.1 x 208.1 mm

Power Consumption

  • 15W

Environment

  • Operation Range: 0°C to 45°C, Storage Range: -20°C to 65°C,
    Operating Humidity: 5-95% RH Non-Condensing

Mounting

  • 1U Rack Mounting

Hybrid IP PBX with 4 FXO and 2 FXS Ports

  • 2 FXS/SLT
  • 4 FXO/CO Ports
  • 2 GSM/3G/4G/LTE Trunks
  • 50 SIP Extensions
  • 8 SIP Trunks
  • 50 IP Users

Particulars (Built-In)

  • IP PBX: NENXIP50

SIP USER

  • 50

SIP Trunks

  • 8

ETERNITY NE VS

  • Yes, Built-In

SARVAM VARTA Essential User

  • 40

SARVAM VARTA Professional User

  • 5

SARVAM VARTA Collaboration User

  • 5

VoIP Channels

  • 8

IP to IP Call (Transcoding)

  • 4

IP to IP Call (DRTP/RTP Relay)

  • 25

IP to TDM Call

  • 8

SARVAM VMS SOHO

  • YES

Voice Mail Channels

  • 4

FXO Ports (CO)

  • 4

FXS Ports (SLT)

  • 2

SARVAM CTI SOHO

  • YES

SARVAM SMS GATEWAY

  • YES

SARVAM SMS SERVER

  • YES

GSM/UMTS/LTE Trunks

  • 2, Using Optional Modules

Ethernet (RJ45) Port

  • 1 x Auto MDIX (10/100 Base-T)

VoIP Protocol

  • SIP, SDP, RTP, SRTP

Network Protocol

  • IPv6, IPv4, TCP, UDP, DHCP, VLAN, DynDNS, PPPoE, QoS, STUN

Transport Protocol

  • UDP, TCP, TLS

Codec

  • G.711(A-law, μ-law), G.723, G.729AB, GSM-FR, iLBC

DTMF

  • RTP (RFC2833), SIP Info, IN-Band

LAN

  • 1 × 10/100 Mbps

Voicemail

  • YES

T.38 Fax

  • YES

Max. External Storage

  • 32GB

USB

  • 1 (With Factory fitted 8 GB Pen-drive)

Power

  • 24VDC 2.5Amp

Size

  • 320.2 x 51.1 x 208.1 mm

Power Consumption

  • 15W

Environment

  • Operation Range: 0°C to 45°C, Storage Range: -20°C to 65°C,
    Operating Humidity: 5-95% RH Non-Condensing

Mounting

  • 1U Rack Mounting

Certifications
