PTZ Network Cameras

Minimum Illumination

• Color: 0.001lux @F1.5, BW 0lux with IR

Shutter Speed

• 1s – 1/100000s

Day & Night

• IR Cut Filter with Auto Switch

Wide Dynamic Range

• 140dB

Optical Zoom

• 25x

Digital Zoom

• 16x

Focal Length

• 4.8mm – 120mm

Zoom Speed

• <4s

Angle of View

• Horizontal: 58.5° – 2.8°
  Vertical: 33.2° – 1.5°

Aperture Range

• F1.5 – F3.8

Pan Range

• 360°

Pan Speed

• Pan Manual Speed: 0.1°/s – 200°/s; Pan Preset Speed 240°/s

Tilt Range

• -16° – 90° (Auto Flip)

Tilt Speed

• Tilt Manual Speed: 0.1°/s – 120°/s; Tilt Preset Speed: 180°/s

3D Position

• Yes

Presets

• 500

Preset Accuracy

• ±0.4°

Scan

• 8

Cruise

• 16, up to 32 preset per cruise

Pattern

• 8, each with 600s memory

Power Off Memory

• Yes

IR LED

• 6

IR Range

• Up to 150m

IR irradiance Angle

• Adjustable by Zoom

Video Compression

• H.265/ H.264/ M-JPEG

Video Bitrate

• 32Kbps – 16Mbps

Audio Compression

• G.711a, G.711µ, ADPCM, AAC_LC

Audio Bitrate

• 8kbps- 48kbps

Max Resolution

• 1920×1080

Mainstream

• PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480)
• NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)

Sub Stream

• PAL: 25fps (704×576, 704×288, 640×360, 352×288)
• NTSC: 30fps (704×480, 704×240, 640×360, 352×240)

Third Stream

• PAL: 25fps (352×288)
• NTSC: 30fps (352×240)

Image Setting

• Saturation, brightness, contrast, sharpness (Adjustable by web browser)

Image Enhancement

• BLC/3D DNR/HLC

ROI

• 7 Dynamic Areas for both Main and Sub Stream

OSD

• 16X16,24X24,32X32,48X48,64X64, Adaptable size, Letters Such as Week, Date, Time Total 5 Regions

Picture Overlay

• Yes

Privacy Mask

• 24

Smart Defog

• Yes

Alarm Trigger

• Motion Detection, IP Conflict,MAC Conflict Detection, Event Input, Event Output, Mask Alarm, Disk Full, Disk R/W Error, FTP Server Exception

Video Analytics

• Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering,Video Abnormal, Audio Abnormal, Running, Parking, Heatmap, Crowd, Demographics(People counting), On Duty Detection

Auto Tracking

• N/A

Protocol

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPv4, IPv6, Multicast, SNMP,802.1x

System Compatibility

• ONVIF Ready

Remote Connection

• ≤7

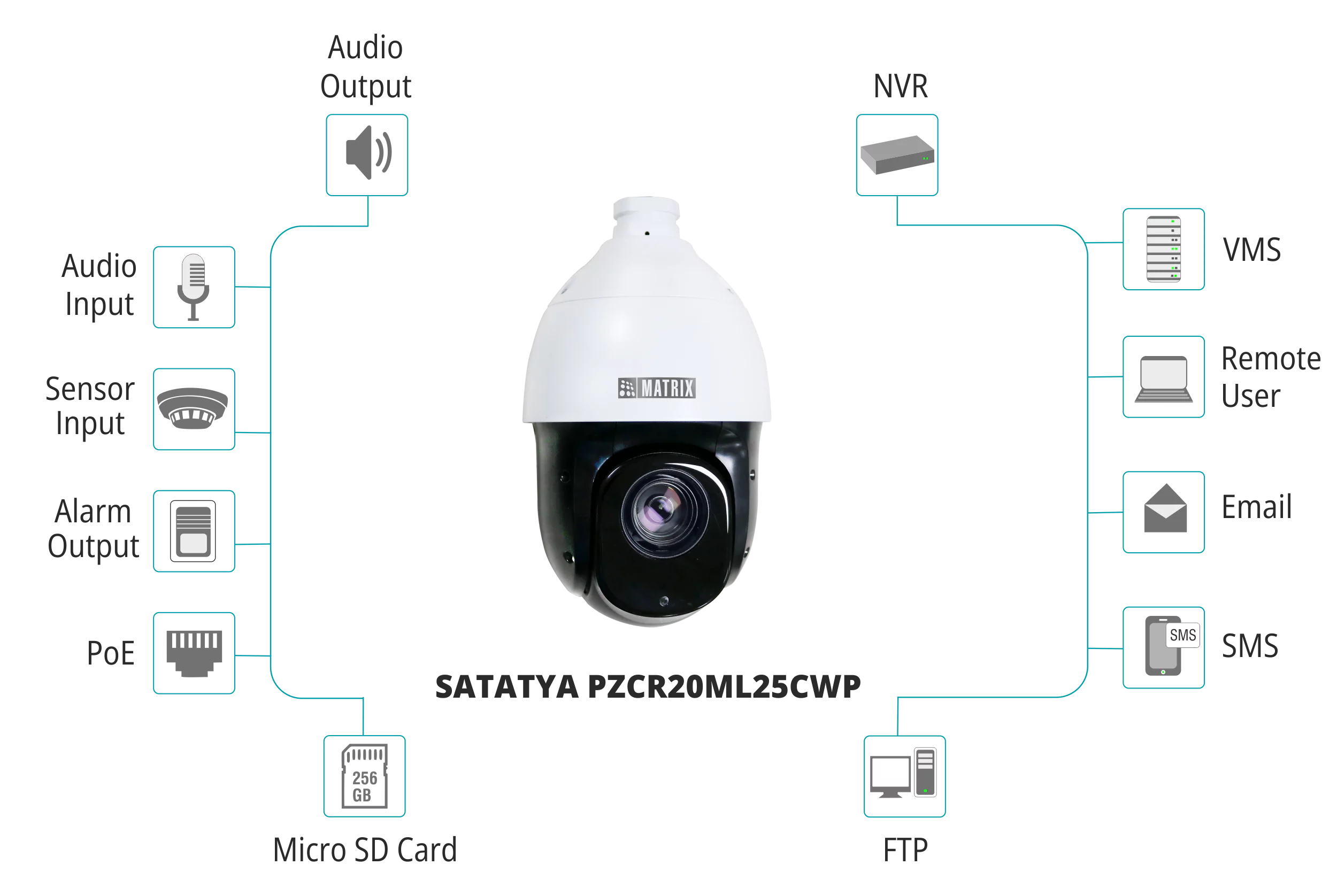

Communication Interface

• 1 RJ45 10/100 Self Adaptive Ethernet Port

Audio

• 1/1

Alarm

• 1/1

Reset Button

• Yes

On Board Storage

• Built in Micro SD card slot upto 512GB

Webpage Language

• 15 Languages

Operating Conditions

• -30°C~70°C (IR OFF), -30°C~40°C (IR ON), 0-95%RH

Power Supply

• DC 12V/ POE

Power Consumption

• 10.7W (IR off); 21W (IR on)

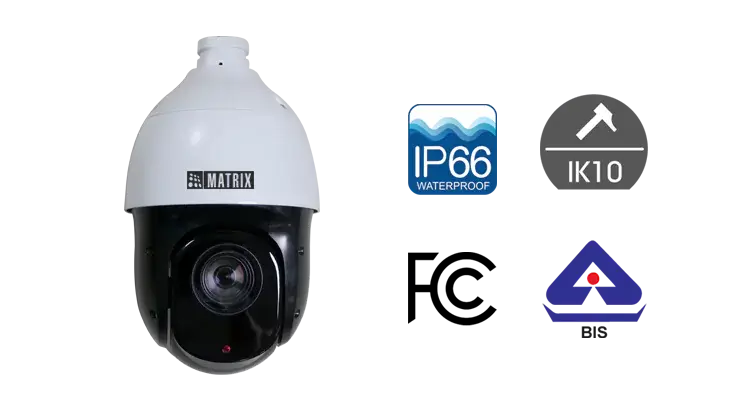

Certification

• IP66, ONVIF, BIS, IK10

Heater

• Yes

Dimension

• Φ161x276mm (Φ6.34×10.87 inch)

Weight

• 2.9 Kg

Minimum Illumination

• Color: 0.001 lux @ F 1.5, Black and White: 0 lux with IR

Shutter Speed

• 1s – 1/100000s

Day and Night

• IR Cut Filter with Auto Switch

Wide Dynamic Range

• 140dB

Optical Zoom

• 33x

Digital Zoom

• 16x

Focal Length

• 4.6mm – 152mm

Zoom Speed

• < 4s

Angle of View

• Horizontal filed of view: 60° (w)~2.3° (t)
• Vertical filed of view: 34.4° (w)~1.5° (t)
• Diagonal field of view: 66.7°(w)~2.8° (t)

Aperture Range

• F1.5~F4.3

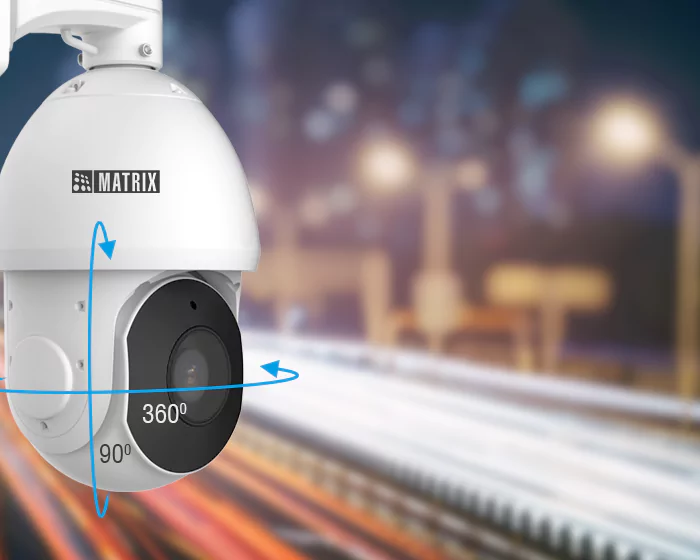

Pan Range

• 360°

Pan Speed

• Pan Manual Speed:0.1°/s-180°/s; Pan Preset Speed 240°/s

Tilt Range

• -16°~90° (Default -3°~90°)

Tilt Speed

• Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s

3D Position

• Yes

Presets

• 500

Preset Accuracy

• ±0.4°

Scan

• 8

Cruise

• 16, up to 32 preset per cruise

Pattern

• 8, each with 600s memory

Power Off Memory

• Yes

IR LED

• 10

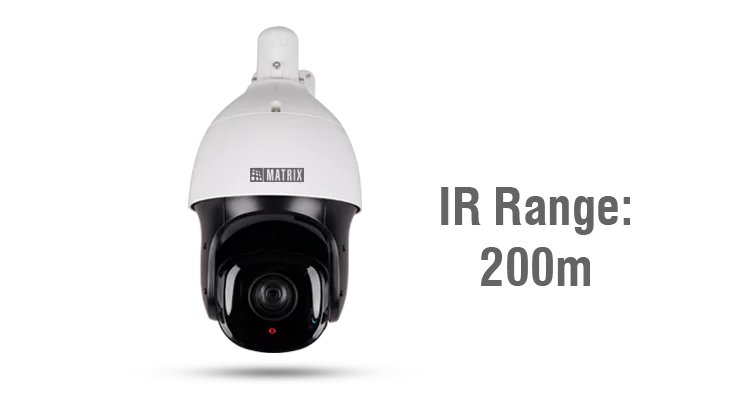

IR Range

• Up to 200m

IR irradiance Angle

• Adjustable by Zoom

Video Compression

• S+265/H.265/H.264/M-JPEG

Video Bitrate

• 32Kbps-16Mbps

Audio Compression

• G.711a, G.711µ, ADPCM, AAC_LC

Audio Bitrate

• 8Kbps – 48Kbps

Max Resolution

• 1920×1080

Mainstream

• PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480)
• NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480)

Sub Stream

• PAL: 25fps (704×576, 704×288, 640×360, 352×288)
• NTSC: 30fps (704×480, 704×240, 640×360, 352×240)

Third Stream

• PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 704×288, 352×288)
• NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 704×240, 352×240)

Image Setting

• Saturation, Brightness, Contrast, Sharpness (Adjustable by Web Browser)

Image Enhancement

• BLC/3D DNR/HLC

ROI

• 7 Dynamic Areas for both Main and Substream

OSD

• 16×16, 24×24,32×32, 48×48, 64×64, adaptable size, Letters such as Week, Date, Time, Total 5 Regions

Picture Overlay

• Yes

Privacy Mask

• 24

Smart Defog

• Yes

Alarm Trigger

• Event Input, Event Output, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception

Video Analytics

• Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Crowd,People Counting, On Duty Detection, Safety Helmet Detection,Video Abnormal, Audio Abnormal

Protocol

• HTTP/HTTPS/TCP/UDP/UPnP/SNMP/DHCP/DNS/DDNS/Easy/DDNS/NTP/SMTP/SSL/802.1X/QoS/IPv4/IPv6/PPPOE/SSH/ Unicast/Multicast/RTMP/RTP/RTSP/NFS/SMB/CIFS/FTP

System Compatibility

• PROFILE S,T,G,M

Remote Connection

• ≤7

Communication Interface

• 1 RJ45 10/100 Self Adaptive Ethernet Port

Audio

• 1/1

Alarm

• 8/2

Reset Button

• Yes

On Board Storage

• Built in Micro SD card slot up to 256GB

Webpage Language

• 15 Languages

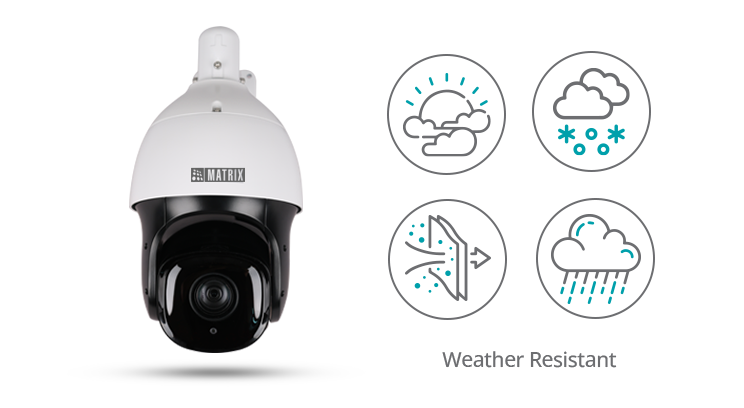

Operating Conditions

• -40°C- +70°C (IR off), -40°C-+40°C (IR ON)

Power Supply

• AC24V/POE++

Power Consumption

• 22W (IR off); 44.2W (IR on)

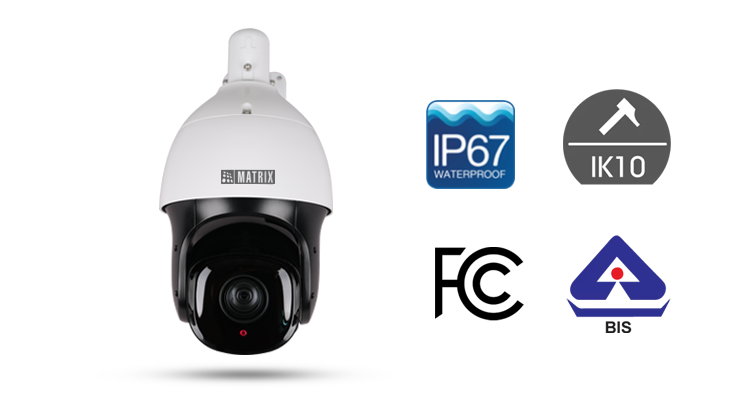

Protection

• IP67

Heater

• N/A

Dimension

• Φ 222×372mm (Φ 8.74× 14.65 inch)

Weight

• 5.3 Kg

Minimum Illumination

• Color: 0.005Lux@F1.2, Color: 0.008Lux@F1.8, B/W: 0Lux with IR on

Shutter Speed

• 1/100000s~1s

Day/Night Mode

• Day/Night/Auto/Customize/Schedule

Wide Dynamic Range

• 120dB

Optical Zoom

• 42x

Digital Zoom

• 16x

Focal Length

• 7~300mm

Zoom Speed

• Approx 7s (Wide-Tele)

Angle of View

• Horizontal:43°-2°
• Vertical:33°-2°
• Diagonal:53°-2°

Aperture Range

• F1.8-F6.5

Pan Range

• 360° endless

Pan Speed

• Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s

Tilt Range

• 0°~90°(Auto Flip)

Tilt Speed

• Tilt Manual Speed: 0.1°~320°/s, Tilt Preset Speed: 320°/s

3D Position

• Yes

Presets

• 300

Scan

• 8

Cruise

• 8, up to 48 preset per cruise

Pattern

• 4

Power Off Memory

• Yes

IR LED

• 5

IR Range

• Up to 300m

IR irradiance Angle

• Auto/Manual

Video Compression

• H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bitrate

• 16Kbps~16Mbps (CBR/VBR Adjustable)

Audio Compression

• G.711/AAC/G.722/G.726

Audio Bitrate

• 16~256kbps

Max Resolution

• 2592×1944

Mainstream

• PAL:25fps@(2592×1944), 45fps@(2048×1536),50fps@ (1920×1080, 1280×960, 1280×720, 704×576)
• NTSC:30fps@(2592×1944),45fps@(2048×1536),60fps@(1920×1080,1280×960,1280×720,704×576)

Sub Stream

• PAL:25fps@ (704×576, 640×480, 640×360, 352×288, 320×240, 320×192, 320×180)
• NTSC:30fps@ (704×576, 640×480, 640×360, 352×288, 320×240, 320×192, 320×180)

Third Stream

• PAL:25fps@ (1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320×192, 320×180)
• NTSC:30fps@ (1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320×192, 320×180)

Image Setting

• Brightness, Contrast, Saturation/Sharpness

Image Enhancement

• BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SNR Value

• >55dB

ROI

• Up to 8 areas

Privacy Mask

• Up to 28 areas (24 mask areas and 4 mosaic areas)

Defog

• Yes

Alarm Trigger

• Motion Detection, Network Disconnection, External Input, Audio Alarm

Video Analytics

• Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed

Protocol

• IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP,Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL

System Compatibility

• ONVIF S,G,Q & T Ready

Communication Interface

• 1*RJ45 10M/100M Ethernet Port

Audio

• 1/1

Alarm

• 4/2

Reset Button

• Yes

On-Board Storage

• Built-in Micro SD card slot up to 256GB

Web Page Language

• Up to 15 Languages

Operating Conditions

• Temperature: -40℃~60℃ / Humidity: 0~90%(non-condensing)

Power Supply

• PoE (802.3at) / AC 24V

Power Consumption

• 12W MAX / 25W MAX (With IR on)

Certification

• ONVIF, BIS

Dimension

• Φ205mmX308mm

Weight

• 4 Kg
