Centralized Monitoring

centralized-monitoring-and-surveillance
  • Link up to 20 Network Video Recorders via a Master and Slave Configuration with Cascading Feature
  • Centrally Monitor 1000+ Cameras Connected to any Network Video Recorder in the Loop
  • View Real-time Footage of any Camera Attached to any NVR in the Loop
  • Saves Server and Software Cost
  • Easy Local and Remote Monitoring
centralized-monitoring-and-surveillance

High Throughput for Smooth Streaming

  • Matrix NVR P2 offer up to 1 GBPS Throughput (Variant-specific; refer datasheet)
  • High Throughput Accelerates Data Processing and System Responsiveness
  • Network Video Recorders Enable Streaming from Multiple Cameras at Higher Resolutions
  • Supports Multiple-user Logins without Compromising Performance
  • Facilitates Multiple Operation Executions, Ensuring Efficient System Functionality

Superior Design and Technology

  • Fanless and Ventless Design of NVRXS Reduces their Susceptibility to Dust, Wear, and System Malfunctions.
  • Fanless and Ventless Design Promotes a Longer, Dependable System Life
  • Matrix Network Video Recorder Supports 4K Video Decoding Seamlessly
  • Up to 12 MP Resolution Recording to Achieve Superior Video Clarity and Detail

Features

Storage Support

Enhance video storage with up to 144 TB (variant-specific; see data sheet), ensuring reliable storage for extended durations while maintaining quantity and quality

Remote Monitoring using P2P

Remote Monitoring via P2P in NVRs offers simplicity, real-time access, and user-friendly connectivity. P2P eliminates complex setups, enabling easy remote access without advanced networking expertise

Camera wise Recording Retention

NVR XS allows customized recording retention, optimizing storage for critical data. This feature enhances data security and ensures user convenience by tailoring storage duration for individual cameras

Optimized Storage

Adaptive Recording prioritizes recording activity periods at higher bitrates and no-activity periods at lower bitrates while Smart Recording assigns bit rates based on stream importance

Inbuilt DHCP Server

The inbuilt DHCP server in Network Video Recorders automates IP address assignment, streamlining network setup for efficiency, time-saving, and user-friendly configuration, reducing the likelihood of configuration conflicts.

Instant Notifications and Alerts

Set up IVAs, storage, and recording alerts to trigger actions and receive SMS, email, and buzzer notifications for immediate response and enhanced situational awareness

RAID Support

NVRX P2 minimizes disk failure risks through RAID 0,1,5,10 (Variant Specific; See Datasheet) support, providing higher data security, improved performance, fault tolerance, and ensured data reliability

H.265 Compression Technology

H.265, the latest video codec standard, halves the bit rate compared to H.264, maintaining image quality. Advantages include up to 57% bandwidth and storage reduction, better compression performance, and improved quality

Proactive Video surveillance

NVRX P2 enhances security with instant event detection, notifications, and flexible configurations. Automatic responses, real-time alerts, and greater control ensure increased security, user convenience, and faster responses

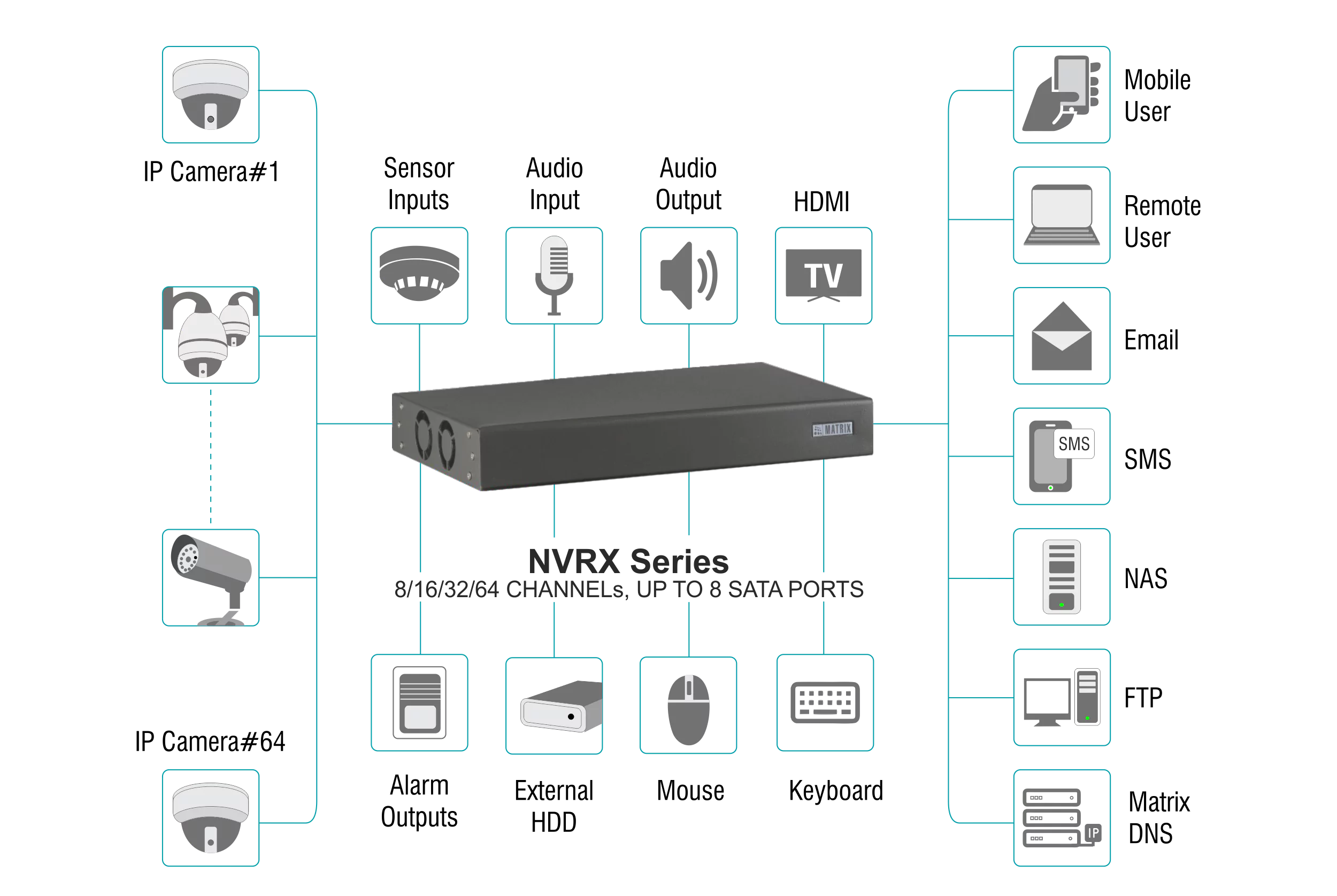

Architecture Diagram

Technical Specifications

Network Video Recorders for
Small Organizations

  • 4/8/16 Channel
  • 1 SATA Port, 10TB Storage Support
  • 360 Mbps Throughput Capacity
  • Single Disk RAID Support
  • NDAA Compliant
VIDEO

Input

  • 4/8/16 IP Channels

Output

  • HDMI (2.0) – 1 Port (Main)

Compression

  • H.265/H.264/ Motion JPEG
AUDIO

Compression

  • G.711µ
THROUGHPUT

Downlink Throughput

  • 180 Mbps
    The following Scenarios are Considered:
    1. Cameras Streaming to Device
    2. Cameras of Cascaded Devices being Viewed on HDMI
    3. Streaming from NAS for local/web client

Downlink Throughput

  • 213 Mbps
    The following scenarios are considered:
    1. Cameras Streaming to Device
    2. Cameras of Cascaded Devices being Viewed on HDMI
    3. Recording in Local HDDs, No NAS Connectivity

Uplink Throughput

  • 180 Mbps
    The following scenarios are considered:
    1. Cameras streaming to the web client
    2. Storage or backup to NAS
    3. Streaming to VMS

Uplink Throughput

  • 205 Mbps
    The following scenarios are considered:
    1. Cameras Streaming to Web Client
    2. NVR streaming to cascaded NVRs/VMS

Simultaneous Log-in

  • 9+1(Admin)
DISPLAY

Digital Zoom on Live

  • Yes

Snapshot

  • Yes

Multiple Camera Viewing

  • Through Cascading (up to 20 Devices)

OSD

  • Channel Number and Name, Status, Video Loss, Recording, and Disabled Channel (As per camera support)
RECORDING

Image Resolution

  • 12MP, 8MP, 5MP,3MP, 2MP, 720P, D1, CIF

Pre-Record

  • Up to 30 Sec

Post-Record

  • 10-300 Sec

Snapshot Format

  • JPEG

Recording Format

  • AVI, Native

Recording Types

  • Scheduled, Manual, Alarm, and COSEC
STORAGE AND BANDWIDTH OPTIMIZATION

Adaptive Recording

  • Automatically Reduces the Number of Frames Captured per Second Where There is No Motion, Thereby Saving Storage Space.

Bandwidth Optimization

  • Automatically Adapts Optimized Resolution on Local Display Through HDMI
PLAYBACK AND BACKUP

Synchronous Playback

  • 16 Channels @ 1080P (via HDMI)

Search Mode

  • Date and Time, Camera, Recording Type, Recording Drive

Backup

  • Manual Backup over USB and NAS,
  • Scheduled Backup over USB, NAS and FTP
  • Scheduled Backup over USB through USB 2.0 interface
  • Manual Backup over USB through USB 3.0 interface
  • Quick Backup over USB, NAS and Local PC

Configuration Backup

  • Yes

Network Protocols

  • TCP/IP, DHCP, PPPOE, DDNS, Free Matrix DNS, FTP, SMTP, NTP, RTP/RTSP, CIFS/NFS, Network Acceleration, UDP

Maximum User

  • 128

Remote Operation

  • Monitor, PTZ Control, Playback, System Setting, File Download, Log Information, Upgrade
EVENTS AND ACTION

Trigger Events

  • Motion Detection, View Tampering, Trip Wire, Object Intrusion, Audio Exception, Missing Object, Suspicious Object, Loitering, Object Counting, Recording Start, Recording Fail, Camera Offline, Camera Online

System Events

  • Manual Trigger, On Boot Alarm, Storage Alert, Disk Volume Full, Disk Fault, Scheduled Backup Fail

Actions

  • Recording on Selected Channel, Upload Images on FTP/ Email Server, Email Notification with Snapshot, TCP Notification, Recall PTZ Preset Position, Turn On/Off Alarm Outputs, Buzzer Notification, SMS Notification, Calling from Mobile App
STORAGE INTERFACE

SATA Interface

  • 1 SATA III (10TB per port)

NAS

  • 2 NAS (CIFS, NFS)

USB

  • 1 TB USB DriveRAID

RAID

  • Single Disk

Retention

  • Camera-wise, HDD usage % wise, Day wise
INTERFACES

Network Interface

  • 1 Port x Ethernet (RJ-45) 10/100/1000Mbps

USB

  • 2 Ports (1x USB 3.0, 1x USB2.0)

LED

  • System Status LED, Power LED

Reset Switch

  • Yes

Buzzer

  • Yes
SYSTEM INTERFACE

Processor

  • Quad-core 64-bit Cortex-A55 processor

RAM

  • 2GB

Flash

  • 4GB

OS

  • Embedded Linux

Control Mode

  • Mouse, Web Client, and Mobile Client
CAMERA SUPPORT

Third Party Camera Support

  • Cameras with ONVIF 2.0 and above
ENVIRONMENT CONDITIONS

Operating Temperature

  • 0°C to +45°C (32°F to 104°F)

Humidity Range

  • 5% to 95% RH Non-Condensing
ELECTRICAL AND MECHANICAL

Power Input

  • Adapter 12V DC/2A

Dimension(L×B×H) in mm

  • 266 X 157 X 44 mm

Weight (without hard disk)

  • 490 gm approx

Ordering Information

SATATYA NVRXS Description IP Channels SATA Ports
(10TB each)
Audio RCA (I/O) Alarm (I/O)
SATATYA NVR0401XS 4 Channel NVR with 1 SATA Port 04 01 N N
SATATYA NVR0801XS 8 Channel NVR with 1 SATA Port 08 01 N N
SATATYA NVR1601XS 16 Channel NVR with 1 SATA Port 16 01 N N

Certifications

Network Video Recorders for
Mid-size Installations

  • 8/16/32/64/96 Channel
  • 1/2/4/8 SATA Ports, 10TB/18TB Storage Support for Each
  • 360/512 MBPS & 1 GBPS Throughput Capacity
  • RAID 0/1/5/10 Support
  • NDAA Compliant
VIDEO

Input

  • 8/16/32/64/96 IP Channels

Output

  • HDMI (2.0) – 1 Port (Main)

Compression

  • H.265/H.264/ Motion JPEG
AUDIO

Input

  • 1 Channel, RCA Port(2.0Vp-p), Range (-2dBu to 22dBu)

Output

  • 1 Channel, RCA Port Mono, Unbalanced output, (2.0Vp-p),
    Range (-2dBu to 22dBu)

Compression

  • G.711µ

Two-way Audio

  • Yes
THROUGHPUT

Downlink Throughput

  • 180/256/512 MBPS (Variant Specific; refer Datasheet)

Uplink Throughput

  • 180/256/512 MBPS (Variant Specific; refer Datasheet)

Simultaneous Log-in

  • 9+1(Admin)
DISPLAY

Split (Through LAN/HDMI)

  • 1×1, 2×2, 3×3, 4×4, 1+5, 1+7, 3+4, 2+8, 1+12, 1©+12, 1+9, 4+9,2+12, 5×5, 6×6, 8×8 and Sequential

Local Decoding

  • 4x 4K/ 10x 3MP/ 16x 1080p/ 64 x D1

Snapshot

  • Yes

Multiple Camera Viewing

  • Through Cascading (up to 20 Devices)

OSD

  • Channel Number and Name, Status, Video Loss, Recording, and Disabled Channel (As per camera support)
RECORDING

Image Resolution

  • 12MP, 8MP, 5MP,3MP, 2MP, 720P, D1, CIF

Pre-Record

  • Up to 30 Sec

Post-Record

  • 10-300 Sec

Snapshot Format

  • JPEG

Recording Format

  • AVI, Native

Recording Types

  • Scheduled, Manual, Alarm, and COSEC
STORAGE AND BANDWIDTH OPTIMIZATION

Adaptive Recording

  • Automatically Reduces the Number of Frames Captured per Second Where There is No Motion, Thereby Saving Storage Space.

Bandwidth Optimization

  • Automatically Adapts Optimized Resolution on Local Display Through HDMI
PLAYBACK AND BACKUP

Synchronous Playback

  • 16 Channels @ 1080P (via HDMI)

Search Mode

  • Date and Time, Camera, Recording Type, Recording Drive

Backup

  • Manual Backup over USB and NAS,
  • Scheduled Backup over USB, NAS and FTP
  • Scheduled Backup over USB through USB 2.0 interface
  • Manual Backup over USB through USB 3.0 interface
  • Quick Backup over USB, NAS and Local PC

Configuration Backup

  • Yes

Network Protocols

  • TCP/IP, DHCP, PPPOE, DDNS, Free Matrix DNS, FTP, SMTP, NTP, RTP/RTSP, CIFS/NFS, Network Acceleration, UDP

Maximum User

  • 128

Remote Operation

  • Monitor, PTZ Control, Playback, System Setting, File Download, Log Information, Upgrade
EVENTS AND ACTIONS

Trigger Events

  • Motion Detection, View Tampering, Trip Wire, Object Intrusion, Audio Exception, Missing Object, Suspicious Object, Loitering, Object Counting, Recording Start, Recording Fail, Camera Offline, Camera Online

System Events

  • Manual Trigger, On Boot Alarm, Storage Alert, Disk Volume Full, Disk Fault, Scheduled Backup Fail

Actions

  • Recording on Selected Channel, Upload Images on FTP/ Email Server, Email Notification with Snapshot, TCP Notification, Recall PTZ Preset Position, Turn On/Off Alarm Outputs, Buzzer Notification, SMS Notification, Calling from Mobile App
STORAGE INTERFACE

SATA Interface

  • Up to 8 SATA III (10TB per port)
  • 1 SATA Port – NVR0801X, NVR1601X
    2 SATA Ports – NVR1602X, NVR3202X
    4 SATA Ports – NVR3204X, NVR6404X
    8 SATA Ports – NVR6408X

NAS

  • 2 NAS (CIFS, NFS)

USB

  • 1 TB USB Drive

RAID

  • Single Disk – NVR0801X, NVR1601X
  • RAID 0,1 – NVR1602X, NVR3202X
  • RAID 0,1,5,10 – NVR3204X, NVR3204X, NVR6404X, NVR6408X, NVR9608X

Retention

  • Camera-wise, HDD usage % wise, Day wise
INTERFACES

Network Interface

  • 1 Port x Ethernet (RJ-45) 10/100/1000Mbps – NVR0801X, NVR1601X
    2 Ports x Ethernet (RJ-45) 10/100/1000Mbps- NVR1602X, NVR3202X

USB

  • 3 Ports (1x USB 3.0, 2x USB2.0)

LED

  • System Status LED, Power LED

Alarm Input

  • 2

Alarm Output

  • 1

Reset Switch

  • Yes

Buzzer

  • Yes
SYSTEM INTERFACE

Processor

  • ARM Cortex A17 Quad-Core

RAM

  • 2GB/4GB (Variant Specific; refer Datasheet)

Flash

  • 2GB/4GB (Variant Specific; refer Datasheet)

OS

  • Embedded Linux

Control Mode

  • Mouse, Web Client, and Mobile Client
CAMERA SUPPORT

Third Party Camera Support

  • Cameras with ONVIF 2.0 and above
ENVIRONMENT CONDITIONS

Operating Temperature

  • 0°C to +50°C (32°F to 122°F)

Humidity Range

  • 5% to 95% RH Non-Condensing
ELECTRICAL AND MECHANICAL

Power Input

  • SMPS (100-240-volt AC)

Dimension(mm) (W×H×D)

  • 320 × 45.85 × 195.5 – NVR0801X, NVR1601X
  • 425.5 × 54.6 × 196 – NVR1602X, NVR3202X
  • 442 × 105.75 × 240.45 – NVR3204X, NVR6404X
  • 442 × 105.75 × 355.45 – NVR6408X

Weight (Kg)

  • 1.38 kg – NVR0801X, NVR1601X
  • 1.68 kg – NVR1602X, NVR3202X
  • 3.88 kg – NVR3204X, NVR6404X
  • 5.68 kg – NVR6408X

Ordering Information

SATATYA NVRX Description IP Channels SATA Ports
(10TB each)
Audio RCA (I/O) Alarm (I/O)
SATATYA NVR0801X 8 Channel NVR with 1 SATA Port 08 01 1/1 2/1
SATATYA NVR1601X 16 Channel NVR with 1 SATA Port 16 01 1/1 2/1
SATATYA NVR1602X 16 Channel NVR with 2 SATA Port 16 02 1/1 2/1
SATATYA NVR3202X 32 Channel NVR with 2 SATA Port 32 02 1/1 2/1
SATATYA NVR3204X 32 Channel NVR with 4 SATA Port 32 04 1/1 2/1
SATATYA NVR6404X 64 Channel NVR with 4 SATA Port 64 04 1/1 2/1
SATATYA NVR6408X 64 Channel NVR with 8 SATA Port 64 08 1/1 2/1
SATATYA NVR9608X 96 Channel NVR with 8 SATA Port 96 08 (18TB each) 1/1 2/1

Certifications
