Ports and Trunks Supported

  • VoIP PRI Gateway Supports up to 4 T1/E1 Ports
  • Up to 125 SIP Trunks
  • Support for PRI Trunks
  • Interface for VoIP Connectivity
  • Scalable Port Capacity for Expanding Communication Infrastructure

Intuitive and Easy Web GUI

  • VoIP PRI Gateway with Simple UI and Enhanced UX
  • Easy to Use and Faster Deployment
  • Intuitive Navigation and Configuration Options
  • Simplified Setup and Management of Gateway Settings
  • Real-time Monitoring and reporting via the Web Interface

Least Cost Routing

  • VoIP PRI Gateway Eliminates the Cumbersome Manual Selection of Call Provider
  • Offers Intelligent Call Routing to Optimize Communication Costs
  • Real-time Analysis of Call Rates and Routing Options

Features

120 SImultaneous Calls

120 Simultaneous Calls

Multiple concurrent calls can be handled simultaneously using the VoIP PRI Gateway, ensuring smooth and uninterrupted communication for increased productivity

120 SImultaneous Calls

Least Cost Routing

Least Cost Routing

VoIP PRI Gateway intelligently selects the most economical route for outgoing calls, minimizing expenses and maximizing savings

Least Cost Routing

PIN Authentication

PIN Authentication

Requires users to input a unique Personal Identification Number for authorized access to the gateway and associated services

PIN Authentication

Automatic Number Translation

Automatic Number Translation

VoIP PRI Gateway seamlessly converts and routes incoming and outgoing calls to their respective translated numbers for streamlined communication management

Automatic Number Translation

Call Detail Record

Call Detail Records of Up to 2000 Calls

VoIP PRI Gateway captures and stores detailed information about each call for monitoring, billing, and analysis purposes

Call Detail Record

Dynamic DNS

Dynamic DNS

VoIP PRI Gateway automatically updates and maps domain names to changing IP addresses, ensuring seamless connectivity and easy accessibility from anywhere

Dynamic DNS

Fax Over IP

Fax Over IP

Transmission of fax messages through seamless integration, improved efficiency, and reduced reliance on traditional fax infrastructure

Fax Over IP

Emergency Number Dialing

Emergency Number Dialing

VoIP PRI Gateway enables direct and immediate access to emergency services for enhanced safety and peace of mind

Emergency Number Dialing

Digest Authentication

Digest Authentication

Verifies and protects user credentials during the authentication process for enhanced privacy and data protection

Digest Authentication

Applications

Fixed Media Gateways

Architecture

Technical Specifications

Setu Vtep _1P_03
Setu Vtep _1P_02
Setu Vtep _1P_01

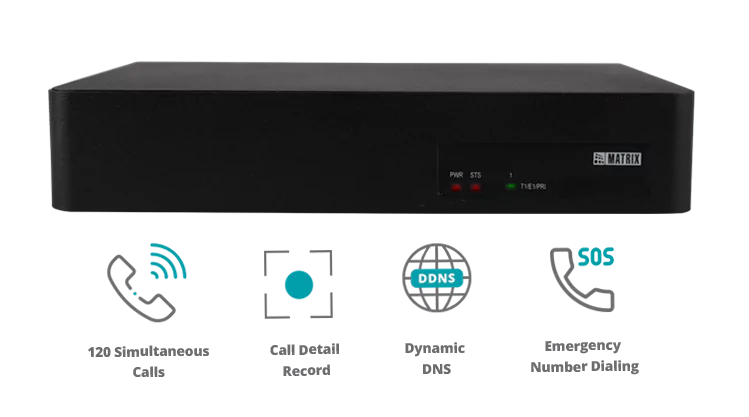

Setu Vtep _1P_04

SETU VTEP1P - VoIP PRI Gateway with 1 PRI Port

  • 1 T1/E1 PRI Port
  • 125 SIP Trunks
  • 30 Simultaneous Calls
  • 1 VoIP Modules
Particulars T1/E1 PRI Ports SIP Trunks No. of simultaneous calls (VoIP to PRI) No. of Built-in VoIP Modules
SETU VTEP 1P 1 125 30 1
LAN Port 1 X 10/100/1000 Mbps Gigabit Interface
WAN Port 1 X 10/100/1000 Mbps Gigabit Interface
VoIP Protocols SIP V2, SDP, RTP (RFC 2883)
Network Protocols IPV6, IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
NAT STUN and NAT Keep-Alive
Voice Codecs G.723, G.729, iLBC 30ms & 20ms, GSM-FR, G.711 A-Law & µ-Law, GSM-EFR
Call Progress Tone Dial Tone, Ring Back Tone, Busy Tone, and Error Tone
FAX T.38 UDPTL and Pass-Through
Power Supply 12V DC, 2A
Power Consumption 22.37 Watt (Max.)
Dimensions (W X H X D) 250.6 X 155.7 X 46 mm (Without Side Clamp) 491 X 155.7 X 46 mm (With Side Clamp)
Mounting 1U Rack Mount & Table-Top
Operating Temperature 0°C to 45°C
Operating Humidity 5 – 95% RH, Non-Condensing
Storage Temperature -20°C to +70°C
Storage Humidity 0 – 95% RH, Non-Condensing
Setu Vtep _2P
Setu Vtep _2P_04
Setu Vtep _2P_03
Setu Vtep _2P_02

SETU VTEP2P - VoIP PRI Gateway with 2 PRI Ports

  • 2 T1/E1 PRI Ports
  • 125 SIP Trunks
  • 60 Simultaneous Calls
  • 1 VoIP Modules
Particulars T1/E1 PRI Ports SIP Trunks No. of simultaneous calls (VoIP to PRI) No. of Built-in VoIP Modules
SETU VTEP 2P 2 125 60 1
LAN Port 1 X 10/100/1000 Mbps Gigabit Interface
WAN Port 1 X 10/100/1000 Mbps Gigabit Interface
VoIP Protocols SIP V2, SDP, RTP (RFC 2883)
Network Protocols IPV6, IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
NAT STUN and NAT Keep-Alive
Voice Codecs G.723, G.729, iLBC 30ms & 20ms,
GSM-FR, G.711 A-Law & µ-Law, GSM-EFR
Call Progress Tone Dial Tone, Ring Back Tone, Busy Tone, and Error Tone
FAX T.38 UDPTL and Pass-Through
Power Supply 12V DC, 2A
Power Consumption 22.37 Watt (Max.)
Dimensions (W X H X D) 250.6 X 155.7 X 46 mm (Without Side Clamp)
491 X 155.7 X 46 mm (With Side Clamp)
Mounting 1U Rack Mount & Table-Top
Operating Temperature 0°C to 45°C
Operating Humidity 5 – 95% RH, Non-Condensing
Storage Temperature -20°C to +70°C
Storage Humidity 0 – 95% RH, Non-Condensing
Setu Vtep _3P_01

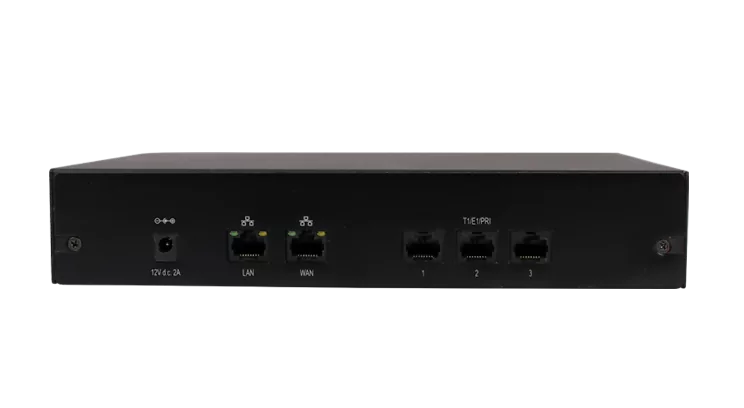

Setu Vtep _3P_02
Setu Vtep _3P_03

SETU VTEP3P - VoIP PRI Gateway with 3 PRI Ports

  • 3 T1/E1 PRI Ports
  • 125 SIP Trunks
  • 90 Simultaneous Calls
  • 2 VoIP Modules
Particulars T1/E1 PRI Ports SIP Trunks No. of simultaneous calls (VoIP to PRI) No. of Built-in VoIP Modules
SETU VTEP 3P 3 125 90 2
LAN Port 1 X 10/100/1000 Mbps Gigabit Interface
WAN Port 1 X 10/100/1000 Mbps Gigabit Interface
VoIP Protocols SIP V2, SDP, RTP (RFC 2883)
Network Protocols IPV6, IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
NAT STUN and NAT Keep-Alive
Voice Codecs G.723, G.729, iLBC 30ms & 20ms, GSM-FR, G.711 A-Law & µ-Law, GSM-EFR
Call Progress Tone Dial Tone, Ring Back Tone, Busy Tone, and Error Tone
FAX T.38 UDPTL and Pass-Through
Power Supply 12V DC, 2A
Power Consumption 22.37 Watt (Max.)
Dimensions (W X H X D) 250.6 X 155.7 X 46 mm (Without Side Clamp) 491 X 155.7 X 46 mm (With Side Clamp)
Mounting 1U Rack Mount & Table-Top
Operating Temperature 0°C to 45°C
Operating Humidity 5 – 95% RH, Non-Condensing
Storage Temperature -20°C to +70°C
Storage Humidity 0 – 95% RH, Non-Condensing
Setu Vtep _4P_01
Setu Vtep _4P_04
Setu Vtep _4P_02
Setu Vtep _4P_03

SETU VTEP4P - VoIP PRI Gateway with 4 PRI Ports

  • 4 T1/E1 PRI Ports
  • 125 SIP Trunks
  • 120 Simultaneous Calls
  • 2 VoIP Modules
Particulars T1/E1 PRI Ports SIP Trunks No. of simultaneous calls (VoIP to PRI) No. of Built-in VoIP Modules
SETU VTEP 4P 4 125 120 2
LAN Port 1 X 10/100/1000 Mbps Gigabit Interface
WAN Port 1 X 10/100/1000 Mbps Gigabit Interface
VoIP Protocols SIP V2, SDP, RTP (RFC 2883)
Network Protocols IPV6, IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
NAT STUN and NAT Keep-Alive
Voice Codecs G.723, G.729, iLBC 30ms & 20ms, GSM-FR,
G.711 A-Law & µ-Law, GSM-EFR
Call Progress Tone Dial Tone, Ring Back Tone, Busy Tone, and Error Tone
FAX T.38 UDPTL and Pass-Through
Power Supply 12V DC, 2A
Power Consumption 22.37 Watt (Max.)
Dimensions (W X H X D) 250.6 X 155.7 X 46 mm (Without Side Clamp)
491 X 155.7 X 46 mm (With Side Clamp)
Mounting 1U Rack Mount & Table-Top
Operating Temperature 0°C to 45°C
Operating Humidity 5 – 95% RH, Non-Condensing
Storage Temperature -20°C to +70°C
Storage Humidity 0 – 95% RH, Non-Condensing

Certifications

tec-compliance
fcc
CE
rohs
Electromagnetic Compatibility
