Superior Images with Dome IP Cameras

  • Matrix Dome IP Camera come with SONY STARVIS Back Illuminated CMOS Sensor for High Quality in Low-light Conditions
  • Exceptional Color Clarity, Visible Even in Low-light (0.01 lux), with a Powerful 50m IR Range
  • IR Cut Filter Lens in Dome IP Camera Eliminates Infrared Light for Accurate Daytime Color Reproduction
  • Capture Well-balanced Images in Varying Light Conditions with the 120dB True WDR Feature

Cyber Secure Video Surveillance

  • First Indian Company to Offer RDSO 6.0 Compliant Dome IP Cameras, Certified by STQC Delhi Lab
  • Data Privacy and Protection with OWASP ASVS 4.0 L2 Compliant Video Surveillance Cameras
  • Eliminates Network Vulnerability by Providing Adequate Password, Firmware, and Software Protection
  • Https Streaming Using TLS 1.2 and Edge Data Encryption to Ensure Cyber Secure Data Streaming and Storage

Adaptive Streaming

  • Adaptive Streaming Reduces Frame Rate During Inactivity Periods
  • Slash Storage and Bandwidth Usage by Up to 50% with Dome IP Cameras
  • Additionally, Smart Streaming, Region of Interest and H.265 Optimizes Storage and Bandwidth

Features

varied-specifications-for-diverse-surveillance-needs

Varied Specifications

Dome IP Cameras Cater to diverse needs with varied specifications - 2MP/5MP/8MP resolutions, flexible lens options, and audio capabilities

varied-specifications-for-diverse-surveillance-needs

edge-recording-with-512gb-storage-support

512GB Storage Support

512GB edge recording safeguards against brownouts for uninterrupted monitoring with Dome IP Cameras

edge-recording-with-512gb-storage-support

Region of Interest

Allows streaming and recording of critical areas at a higher bitrate from the entire image, optimizing bandwidth and storage requirements

smart-streaming-to-minimize-bandwidth-and-storage

Smart Streaming

Smart streaming technology divides streams into multiple bitrates, optimizing storage and bandwidth while preserving crucial details

smart-streaming-to-minimize-bandwidth-and-storage

Proactive Surveillance with Intelligent Video Analytics

Intelligent Video Analytics

Intelligent video analytic features for comprehensive surveillance: motion, tamper, intrusion, tripwire, and time-triggered detection

Proactive Surveillance with Intelligent Video Analytics

Expanded Field of View for Superior Image Capture

Expanded Field of View

Experience unmatched surveillance with Matrix CCTV cameras featuring a wide field of view of 125°

Expanded Field of View for Superior Image Capture

Enhanced Monitoring, Recording, and Streaming With Quad Stream Support

Quad Stream Support

Quad stream support in CCTV cameras enables simultaneous generation of four video streams, gives the flexibility for monitoring, recording, and live-streaming activities

Enhanced Monitoring, Recording, and Streaming With Quad Stream Support

Maximize Storage Capacity with H.265 Video Compression

H.265 Video Compression

Unlock ample storage space with H.265 video compression. This advanced technology efficiently reduces file size, optimizing storage capacity without compromising video quality

Maximize Storage Capacity with H.265 Video Compression

crystal-clear-vision-with-73db-sound-to-noise-ratio-1

High Sound-to-Noise Ratio

Unrivaled image precision with Matrix Dome IP Cameras boasting an exceptional SNR ratio of >70dB

crystal-clear-vision-with-73db-sound-to-noise-ratio-1

Applications

Parking Management

Parking Management

Parking Management

Weighbridge Integration

Weighbridge Integration

Weighbridge Integration

Perimeter Security

Perimeter Security

Perimeter Security

Integration with Access Control

Access Control Integration

Integration with Access Control

Centralized Video Surveillance

Centralized Video Surveillance

Centralized Video Surveillance

Architecture Diagram

architure-diagram

Technical Specifications

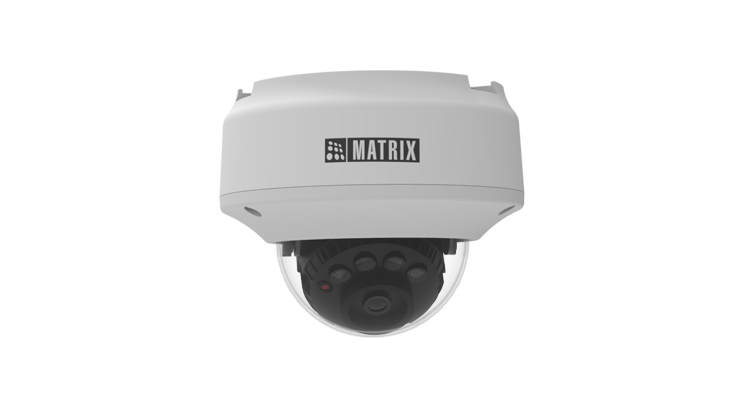

project-series-dome-camera-3
top

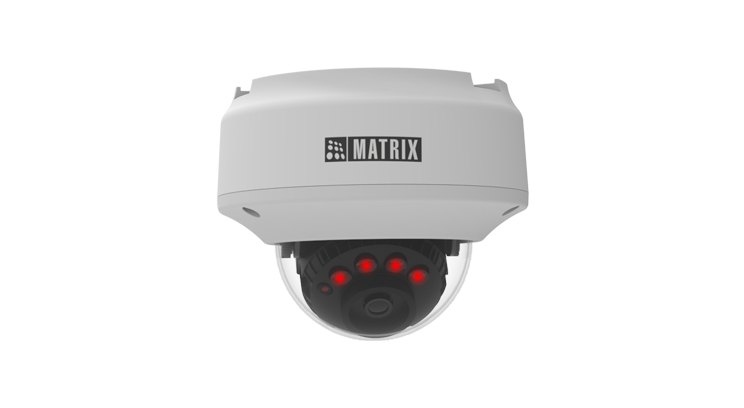

led-lights
project-series-dome-camera-4

Project Series 2MP IR Dome IP Camera

  • 2MP Resolution
  • 120dB True WDR, >70dB SNR
  • IR Range 50m

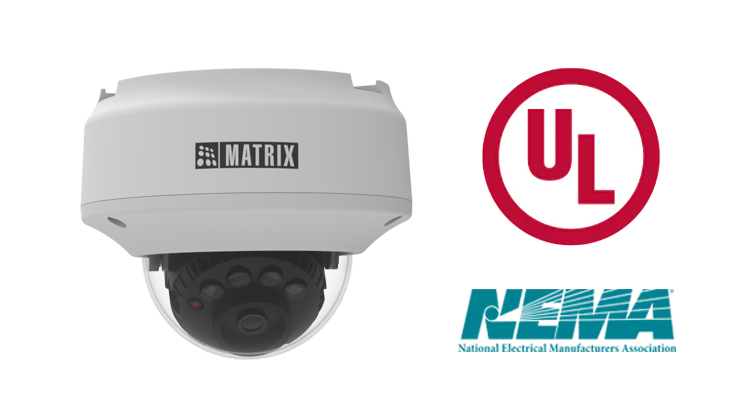

  • BIS, CE, FCC, RoHS, IK10, IP67, UL, NEMA 4X
  • NDAA Compliant
IMAGE SENSOR

Resolution

  • 2 MP (1920 x 1080)

Sensor Type and Size

  • 1/2.8″ SONY – CMOS 2MP Active Pixel
    Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)
LENS

Minimum Illumination

  • Color – 0.01 Lux @F1.2 (AGC ON)
    Monochrome – 0 Lux

Focal Length

  • 2.8mm, 3.6mm, 6mm

Focus Range

  • 0.3m to infinity

Field of View (FOV)

  • 2.8mm 3.6mm 6mm 2.8mm-12mm VL/MVL
    HFOV 107° 87.5° 54° 98°-33°
    VFOV 57° 44.4° 29° 51°-19°
    DFOV 128° 105° 63° 116°-38°

Lens Mount

  • Fixed Lens: M12x0.5
    Manual Varifocal Lens: M14
    Motorized Varifocal Lens: M14

Focus

  • Fixed for 2.8mm,3.6mm, and 6mm
    Manual Varifocal Iris for VL
    Motorized Varifocal Iris for MVL

Aperture (F#)

  • Fixed Lens: F 1.6/ F2.0
    Varifocal Lens: F1.6-F3.2.
    Motorized Varifocal Lens: F1.6-F3.2

Iris Type

  • Fixed Lens: Fixed
    Manual Varifocal Iris for VL
    Motorized Varifocal Iris for MVL

IR Range

  • Up to 50m

IR Led Wavelength

  • 850nm

IR Switching

  • Auto/ Manual
AUDIO INTERFACE

Audio IN

  • 1, 3.5mm Audio Jack (For Premium Variants)

Audio OUT

  • 1, 3.5mm Audio Jack (For Premium Variants)

Two-way Audio

  • Supported

Audio Compression

  • G.726 and G.711µ

Alarm In

  • Yes Phoenix type (For Premium Variants)

Alarm Out

  • Yes Phoenix type (For Premium Variants)
HARDWARE SPECIFICATIONS

SD Card

  • Up to 512GB

Camera Adjustment Angle

  • Pan – 0° to 330°
    Tilt – 0° to 75°
    Rotate – 0° to 180°
IMAGE AND VIDEO

No. of Stream Profiles

  • 4

Stream Profiles

  • Profile 1: 1080p(2MP)/720p/D1/2CIF/CIF up to 30 fps (H.265/H.264)
    Profile 2: D1/2CIF/CIF up to 30fps (H.265/H.264)
    Profile 3: 1080p(2MP)/720p/D1/2CIF/CIF up to 5 fps (MJPEG)
    Profile 4: 720p/D1/2CIF/CIF up to 30 fps (H.265/H.264/MJPEG)

Available Resolutions

  • 1920 x 1080, 720p, D1,2CIF, CIF, VGA

Max Resolution

  • 1920 x 1080

Bitrate

  • 128 kbps-8Mbps

Bitrate Type

  • CBR, VBR

Video Compression

  • H.265, H.264, MJPEG

Frame Rate

  • 1-30fps

Shutter Speed

  • 1/15s -1/100000s

Adaptive Streaming

  • Yes

ONVIF Profiles

  • Both S, G & T

Edge Recording

  • Yes

Alarm Recording

  • Pre and Post

Motion Recording

  • Yes

Time Triggered

  • Yes

Video Parameters

  • Snapshot, Region of Interest (ROI), BLC, Day/Night Settings

Privacy Masks

  • 3

WDR

  • True WDR (120dB)

SNR

  • >70dB

Image Enhancement

  • Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVS-Forensics/ Smart IR

DNR

  • 2D &3D

Video Analytics

  • Motion
    Tamper Detection
    Trip/No Trip Detection
    Object Intrusion/Zone Intrusion
    Audio Exception
ALERTS

IP Conflict

  • Yes

Network Disconnect

  • Yes

Storage Full

  • Yes
EVENTS AND ACTIONS

Upload Image

  • SD, NAS, SFTP

Upload Clip

  • SD, NAS, SFTP

Notifications

  • E-mail, SMS, TCP
PROTOCOLS SUPPORTED

Supported protocols

  • TCP/IP, HTTP, ARP, HTTPS, DSCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, TLS/SSL, SFTP, ICMP, IGMP, 802.1x, SNMP, UPnP, Bonjour,UDP

Web Viewer

  • Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0

Browser

  • IE, Chrome, Mozilla
CYBER SECURITY

Secure boot

  • Yes

Signed firmware

  • Yes

Data Encryption

  • All data, including sensitive data, is encrypted with AES 256 and RSA 2048

IP Address Filtering

  • Yes

HTTPs Streaming

  • Yes, using TLS 1.2

Edge Data Encryption

  • Yes

Network Authentication

  • Yes,802.1x Network authentication

Secure Firmware Upgrade

  • Yes

Anti-roll back firmware

  • Yes

Web login Password protection

  • Yes

Unused debug interface protection

  • Yes
OPERATING PARAMETERS

Power Supply

  • 12V (DC); 802.3af (PoE)

Power Consumption

  • Approximately 7W

Operating Humidity

  • Less than 95% RH (non-condensing)

Operating Temperature

  • -30°C to 60°C

Storage Temperature

  • -30°C to 60°C
PHYSICAL PARAMETERS

Communication interface

  • 10Base-T/100BaseTX Ethernet (RJ-45)

Weight

  • 1.41 Kgs

Color

  • Infinity White

Dimensions

  • Dimensions (mm): Diameter Φ158 x Length 134

Storage

  • NAS, SD Card

Certifications

  • BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S G & T, IK10, UL, NEMA 4X**, STQC Certified with OWASP ASVS 4.0 L2

Ordering Information

Project Series 2MP Dome Description Lens Focal Length Two-way Audio
SATATYA CIDR20FL28CWS 2MP IR Dome Fixed 2.8mm Lens Fixed 2.8mm No
SATATYA CIDR20FL28CWP 2MP IR Dome Fixed 2.8mm Lens With Audio Fixed 2.8mm Yes
SATATYA CIDR20FL36CWS 2MP IR Dome Fixed 3.6mm Lens Fixed 3.6mm No
SATATYA CIDR20FL36CWP 2MP IR Dome Fixed 3.6mm Lens With Audio Fixed 3.6mm Yes
SATATYA CIDR20FL60CWS 2MP IR Dome Fixed 6mm Lens Fixed 6.0mm No
SATATYA CIDR20FL60CWP 2MP IR Dome Fixed 6mm Lens With Audio Fixed 6.0mm Yes
SATATYA CIDR20VL12CWS 2MP IR Dome Varifocal 2.8-12mm Lens Varifocal 2.8mm-12mm No
SATATYA CIDR20MVL12CWP 2MP IR Dome Motorized Varifocal 2.8-12mm Lens With Audio Motorized Varifocal 2.8mm-12mm Yes
Close
project-series-dome-camera-3
top-1
led-lights-1
project-series-dome-camera-6

Project Series 5MP IR Dome IP Camera

  • 5MP Resolution
  • 120dB True WDR, >70dB SNR
  • IR Range 50m
  • BIS, CE, FCC, RoHS, IK10, IP67, UL, NEMA 4X
  • NDAA Compliant
IMAGE SENSOR

Resolution

  • 5 MP (2592*1944)

Sensor Type and Size

  • 1/2.8″ SONY – CMOS 5MP Active Pixel
  • Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)
LENS

Minimum Illumination

  • Color – 0.01 Lux @F1.2 (AGC ON)
    Monochrome – 0 Lux

Focal Length

  • 2.8mm, 4mm, 6mm

Focus Range

  • 0.3m to infinity

Field of View (FOV)

  • 2.8mm 4mm 6mm 2.8mm-12mm VL/MVL
    HFOV 107.6° 87.6° 54.3° 106°-32°
    VFOV 57° 46.4° 29.2° 73°-32°
    DFOV 127.62° 104.5° 63° 142°-39°

Lens Mount

  • Fixed Lens: M12x0.5
    Manual Varifocal Lens: M14
    Motorized Varifocal Lens: M14

Focus

  • Fixed for 2.8mm,4mm, 6mm
    Manual Varifocal Iris for VL
    Motorized Varifocal Iris for MVL

Aperture (F#)

  • Fixed Lens: F 1.6/ F2.0
    Varifocal Lens: F1.6-F3.2
    Motorized Varifocal Lens: F1.6-F3.2

Iris Type

  • Fixed Lens: Fixed
    Varifocal: F1.6-F3.2
    Motorized Varifocal: F1.6-F3.2

IR Range

  • Up to 50m

IR Led Wavelength

  • 850nm

IR Switching

  • Auto/ Manual
AUDIO INTERFACE

Audio IN

  • 1, 3.5mm Audio Jack (For Premium Variants)

Audio OUT

  • 1, 3.5mm Audio Jack (For Premium Variants)

Two-way Audio

  • Supported

Audio Compression

  • G.726 and G.711µ

Alarm In

  • Yes Phoenix type (For Premium Variants)

Alarm Out

  • Yes Phoenix type (For Premium Variants)
HARDWARE SPECIFICATIONS

SD Card

  • Up to 512GB

Camera Adjustment Angle

  • Pan – 0° to 330°
    Tilt – 0° to 75°
    Rotate – 0° to 180°
IMAGE AND VIDEO

No. of Stream Profiles

  • 4

Stream Profiles

  • Profile 1: Mainstream – 2592*1944@ 30fps (H.265/H.264)
    Profile 2: Substream – D1@30fps (H.265/ H.264)
    Profile 3: MJPEG – 2048*1536@8fps (MJPEG)
    Profile 4:1920*1080@30fps (H.265/H.264/MJPEG)

Available Resolutions

  • 2592*1944 (5MP),2592*1520,2048*1536,1920*1080,720p, D1,VGA,2CIF,CIF

Max Resolution

  • 2592*1944

Bitrate

  • 128kbps-16Mbps

Bitrate Type

  • CBR, VBR

Video Compression

  • H.265, H.264, MJPEG

Frame Rate

  • 1-30fps

Shutter Speed

  • 1/15s -1/100000s

Adaptive Streaming

  • Yes

ONVIF Profiles

  • S, G, & T

Edge Recording

  • Yes

Alarm Recording

  • Pre and Post

Motion Recording

  • Yes

Time Triggered

  • Yes

Video Parameters

  • Snapshot, Region of Interest (ROI), BLC, Day/Night Settings

Privacy Masks

  • 8

WDR

  • True WDR (120dB)

SNR

  • >70dB

Image Enhancement

  • Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVS-Forensics/ Smart IR

DNR

  • 2D &3D

Video Analytics

  • Motion
    Tamper Detection
    Trip/No Trip Detection
    Object Intrusion/Zone Intrusion
    Audio Exception
ALERTS

IP Conflict

  • Yes

Network Disconnect

  • Yes

Storage Full

  • Yes
EVENTS AND ACTIONS

Upload Image

  • SD, NAS, SFTP

Upload Clip

  • SD, NAS, SFTP

Notifications

  • E-mail, SMS, TCP
PROTOCOLS SUPPORTED

Supported protocols

  • TCP/IP, HTTP, HTTPs, DSCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, TLS/SSL, SFTP, ICMP, IGMP, ARP, UDP, 802.1x, SNMP, UPnP, Bonjour

Web Viewer

  • Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0

Browser

  • IE, Chrome, Mozilla
CYBER SECURITY

Secure boot

  • Yes

Signed firmware

  • Yes

Data Encryption

  • All data, including sensitive data, is encrypted with AES 256 and RSA 2048

IP Address Filtering

  • Yes

HTTPs Streaming

  • Yes, using TLS 1.2

Edge Data Encryption

  • Yes

Network Authentication

  • Yes,802.1x Network authentication

Secure Firmware Upgrade

  • Yes

Anti-roll back firmware

  • Yes

Web login Password protection

  • Yes

Unused debug interface protection

  • Yes
OPERATING PARAMETERS

Power Supply

  • 12V (DC); 802.3af (PoE)

Power Consumption

  • Approximately 7W

Operating Humidity

  • Less than 95% RH (non-condensing)

Operating Temperature

  • -30°C to 60°C

Storage Temperature

  • -30°C to 60°C
PHYSICAL PARAMETERS

Communication interface

  • 10Base-T/100BaseTX Ethernet (RJ-45)

Weight

  • 1.41 Kgs

Color

  • Infinity White

Dimensions

  • Dimensions (mm): Diameter Φ158 x Length 134

Storage

  • NAS, SD Card

Certifications

  • BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S G & T, IK10, UL, NEMA 4X**, STQC Certified with OWASP ASVS 4.0 L2

Ordering Information

Project Series 5MP Dome Description Lens Focal Length Two-way Audio
SATATYA CIDR50FL28CWS 5MP IR Dome Fixed 2.8mm Lens Fixed 2.8mm No
SATATYA CIDR50FL28CWP 5MP IR Dome Fixed 2.8mm Lens With Audio Fixed 2.8mm Yes
SATATYA CIDR50FL40CWS 5MP IR Dome Fixed 4mm Lens Fixed 4.0mm No
SATATYA CIDR50FL40CWP 5MP IR Dome Fixed 4mm Lens With Audio Fixed 4.0mm Yes
SATATYA CIDR50FL60CWS 5MP IR Dome Fixed 6mm Lens Fixed 6.0mm No
SATATYA CIDR50FL60CWP 5MP IR Dome Fixed 6mm Lens With Audio Fixed 6.0mm Yes
SATATYA CIDR50VL12CWS 5MP IR Dome Varifocal 2.8-12mm Lens Varifocal 2.8mm-12mm No
SATATYA CIDR50MVL12CWP 5MP IR Dome Motorized Varifocal 2.8-12mm Lens With Audio Motorized Varifocal 2.8mm-12mm Yes
Close
project-series-dome-camera-3
top-2
led-lights-2
project-series-dome-camera-5

Project Series 8MP IR Dome IP Camera

  • 8MP Resolution
  • 120dB True WDR, >70dB SNR
  • IR Range 50m
  • BIS, CE, FCC, RoHS, IK10, IP67, UL, NEMA 4X
  • NDAA Compliant
IMAGE SENSOR

Resolution

  • 8 MP (3840*2160)

Sensor Type and Size

  • 1/1.8″ or 1/2.8″ SONY – CMOS 8MP Active Pixel
    Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)
    (Variant Specific; refer Datasheet)
LENS

Minimum Illumination

  • Color – 0.01 Lux @F1.2 (AGC ON)
    Monochrome – 0 Lux

Focal Length

  • 2.8mm, 3.6mm, 6mm

Focus Range

  • 0.3m to infinity

Field of View (FOV)

  • 2.8mm 3.6mm 6mm 4.3mm-10mm VL/MVL
    HFOV 106.9° 84° 51.26° 110.4°(W)-45°(T)
    VFOV 56.9° 47.8° 28.84° 57.8°(W)-25.2°(T)
    DFOV 127.9° 96.4° 58.74°

Lens Mount

  • Fixed Lens: M12x0.5
    Motorized Varifocal Lens: M14

Focus

  • Fixed for 2.8mm,3.6mm, 6mm
    Manual Varifocal Iris for VL
    Motorized Varifocal Iris for MVL

Aperture (F#)

  • Fixed Lens: F 1.6/ F2.0 (on demand)
    Motorized Varifocal Lens: F1.6-F2.6

IR Range

  • Up to 50m

IR Led Wavelength

  • 850nm

IR Switching

  • Auto/ Manual
AUDIO INTERFACE

Audio IN

  • 1, 3.5mm Audio Jack (For Premium Variants)

Audio OUT

  • 1, 3.5mm Audio Jack (For Premium Variants)

Two-way Audio

  • Supported

Audio Compression

  • G.726 and G.711µ (Only for Premium Variants)

Alarm In

  • Yes Phoenix type (For Premium Variants)

Alarm Out

  • Yes Phoenix type (For Premium Variants)
HARDWARE SPECIFICATIONS

SD Card

  • Up to 512GB

Camera Adjustment Angle

  • Pan – 0° to 330°
    Tilt – 0° to 75°
    Rotate – 0° to 180°
IMAGE AND VIDEO

No. of Stream Profiles

  • 4

Stream Profiles

  • Profile 1: Mainstream – 2592*1944@ 30fps (H.265/H.264)
    Profile 2: Substream – D1@30fps (H.265/ H.264)
    Profile 3: MJPEG – 2048*1536@8fps (MJPEG)
    Profile 4:1920*1080@30fps (H.265/H.264/MJPEG)

Available Resolutions

  • 3840*2160,2688*1944,2688*1520, 1920*1080, 720p, D1, VGA

Max Resolution

  • 3840*2160 at 30fps

Bitrate

  • 128kbps-16Mbps

Bitrate Type

  • CBR, VBR

Video Compression

  • H.265, H.264, MJPEG

Frame Rate

  • 1-30fps

Shutter Speed

  • 1/15s -1/100000s (in an upcoming release)

Adaptive Streaming

  • Yes

ONVIF Profiles

  • S, G, and T

Edge Recording

  • Yes

Alarm Recording

  • Pre and Post

Motion Recording

  • Yes

Time Triggered

  • Yes

Video Parameters

  • Snapshot, Region of Interest (ROI), BLC, Day/Night Settings

Privacy Masks

  • 8

WDR

  • True WDR (120dB)

SNR

  • >70dB

Image Enhancement

  • Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVS-Forensics/ Smart IR

DNR

  • IP3D

Video Analytics

  • Motion, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception
ALERTS

IP Conflict

  • Yes

Network Disconnect

  • Yes

Storage Full

  • Yes
EVENTS AND ACTIONS

Upload Image

  • SD, NAS, SFTP

Upload Clip

  • SD, NAS, SFTP

Notifications

  • E-mail, SMS, TCP
PROTOCOLS SUPPORTED

Supported protocols

  • TCP/IP, HTTP, HTTPs, DSCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, TLS/SSL, SFTP, ICMP, IGMP, ARP, UDP, 802.1x, SNMP, UPnP, Bonjour

Web Viewer

  • Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0

Browser

  • IE, Chrome, Mozilla
CYBER SECURITY

Secure Boot

  • Yes

Signed Firmware

  • Yes

Data Encryption

  • All data, including sensitive data, is encrypted with AES 256 and RSA 2048

IP Address Filtering

  • Yes

HTTPS Streaming

  • Yes, using TLS 1.2

Edge Data Encryption

  • Yes

Network Authentication

  • Yes,802.1x Network authentication

Secure Firmware Upgrade

  • Yes

Anti-roll back firmware

  • Yes

Web login Password Protection

  • Yes

Unused Debug Inteface Protection

  • Yes
OPERATING PARAMETERS

Power Supply

  • 12V (DC); 802.3af (PoE)

Power Consumption

  • Approximately 7W

Operating Humidity

  • Less than 95% RH (non-condensing)

Operating Temperature

  • -30°C to 60°C

Storage Temperature

  • -30°C to 60°C
PHYSICAL PARAMETERS

Communication interface

  • 10Base-T/100BaseTX Ethernet (RJ-45)

Weight

  • 1.41 Kgs

Color

  • Infinity White

Dimensions

  • Dimensions (mm): Diameter Φ158 x Length 134

Storage

  • NAS, SD Card

Certifications

  • BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S, G, & T, IK10, NEMA 4x

Ordering Information

Project Series 8MP Dome Description Lens Focal Length Two-way Audio
SATATYA CIDR80FL28CWS 8MP IR Dome Fixed 2.8mm Lens Fixed 2.8mm No
SATATYA CIDR80FL28CWP 8MP IR Dome Fixed 2.8mm Lens With Audio Fixed 2.8mm Yes
SATATYA CIDR80FL36CWS 8MP IR Dome Fixed 3.6mm Lens Fixed 3.6mm No
SATATYA CIDR80FL36CWP 8MP IR Dome Fixed 3.6mm Lens With Audio Fixed 3.6mm Yes
SATATYA CIDR80FL60CWS 8MP IR Dome Fixed 6mm Lens Fixed 6.0mm No
SATATYA CIDR80FL60CWP 8MP IR Dome Fixed 6mm Lens With Audio Fixed 6.0mm Yes
SATATYA CIDR80ML12CWP 8MP IR Dome Motorized Varifocal 4.3 – 10mm Lens with Audio Motorized Varifocal 4.3mm-10mm Yes
Close

Certifications

stqc-logo
BIS
CE
FCC
IP67
Onvif

Resources

Presentation Revert

Presentation

Presentation

Brochure

Brochure

Brochure Revert

Technical Specifications

Technical Specifications

Technical-Specifications Revert

Back To Top
